LOCKING TYPE

Not Self-Locking

MAX. FACE RUNOUT

0.002 in

THICKNESS

13/32 in

LOCKWASHER SERIES

W Series, TW Series

RIGHT / LEFT HAND

Right Hand

THREAD SIZE

M30

THREAD PITCH

N/A

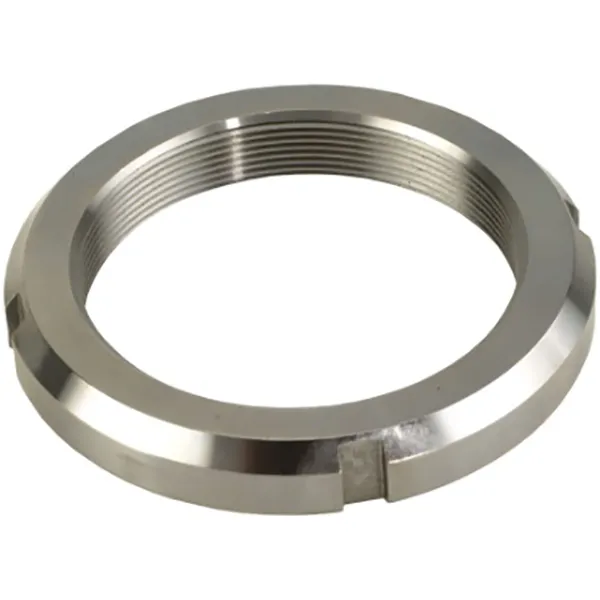

LOCKNUT SERIES

N Series

THREADS PER INCH

18

MATING LOCKWASHER

W06

O.D.

1 3/4 in

SLOT WIDTH [MIN]

0.178 in

SHAFT DIA.

30.0000 mm

MATERIAL

Steel

SHAFT THREADS MINOR DIAMETER [MAX]

1.1048 in

FACE DIAMETER

1 1/2 in

SHAFT THREADS MAJOR DIAMETER [MAX]

1.173 in

GRADE

Standard

WEIGHT

0.137 LB

EAN OR UPC

737533004419

NSN NUMBER

5310-00-185-6463
