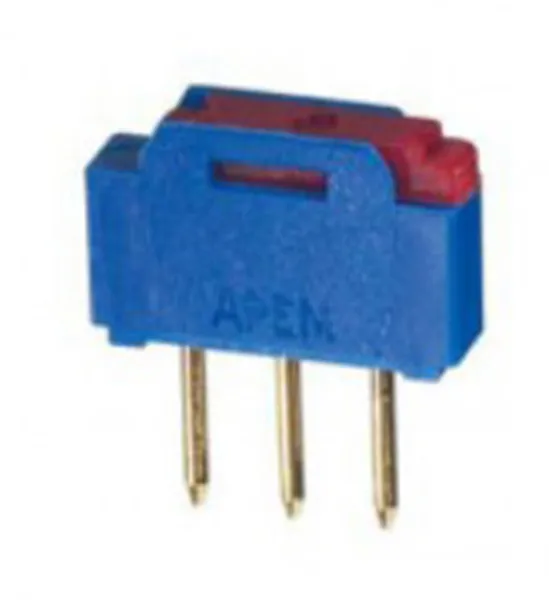

Slide Switches NK series
The smallest changeover switch.
MAIN FEATURES
- Available with flush or raised actuator & straight or right angle PC terminals.
- Wave solderable.
FEATURES
GENERAL SPECIFICATION
• Wave solderable : flux sealed
• End stackable, 2.54 (.100) terminal to terminal pitch - 4 switches max., hole dia. 1 mm (.039)
• Travel : 1.6 mm (.062)
• Soldering temperature : 250 °C for 5 sec. max.
ENVIRONMENTAL SPECIFICATIONS
• Operating temperature : -40 °C to +85 °C
• Moisture test : 21 days at 95 % RH (IEC 68-2-3)
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load : 0.5 A 12 V
• Minimum load : 1 mA 10 mV
• Initial contact resistance : 20 mΩ max.
• Insulation resistance : 10,000 MΩ min. at 500 VDC
• Dielectric strength : 250 Vrms. 50 Hz min. between terminals 2,000 Vrms 50 Hz min. between adjacent poles of switches placed side by side
• Electrical life with nominal load : 2,000 cycles
• Capacitance :
MATERIALS
• Case : PA6/6, glass filled, UL94-V0
• Actuator : PA6/6, glass filled, UL94-V0
• Contacts : gold over nickel
