Apache Inc

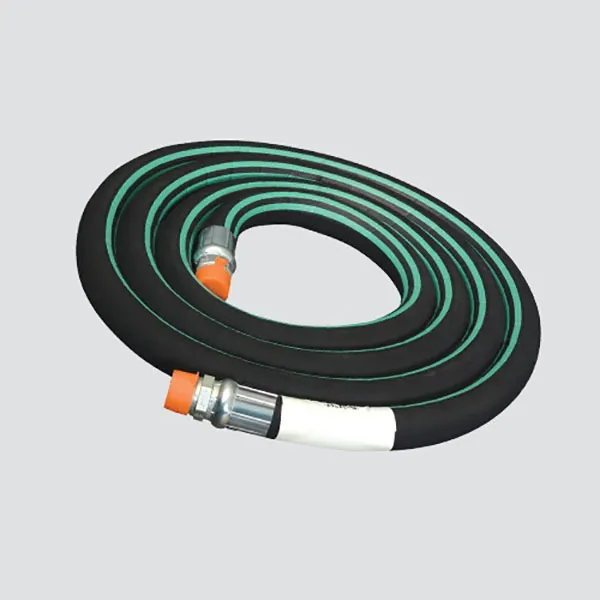

1 x 1.46' Nylon Braid Reinforced Anhydrous Ammonia (NH3) Hose Assembly

1" x 1.46' Nylon Braid Reinforced Anhydrous Ammonia (NH3) Hose Assembly

Designed to handle anhydrous ammonia to 350 PSI working pressure with a 5:1 safety factor (1750 PSI minimum burst). Degradation resistant, nylon reinforcement provides flexibility with high tensile strength. High quality synthetic compound cover provides excellent ozone and abrasion resistance. Compatible with N-Serve® when used in recommended concentrations. All assemblies have crimped and certified male pipe thread fittings attached to both ends, plus pin-pricked covers to prevent delamination. Meets or exceeds RMA/TFI/ANSI.

SPECIFICATIONS

• UPC: 725559338922
• Inside Diameter (in): 1
• Inside Diameter (mm): 25.4
• Outside Diameter (in): 1.5
• Outside Diameter (mm): 38.1
• Maximum PSI:  350
• Minimum Bend Radius (in): 10
• Fittings: Male Pipe Thread x Male Pipe Thread Crimped
• Temperature Range: -40°F to 180°F
• Cover Material: EPDM
• Cover Color: Black
• Tube Material: EPDM
• Tube Color: Black
• Reinforcement: 2 Nylon Braids
• Weight (lbs): 11.06 / Each
• Style: Coiled
• Notes: Do not use Anhydrous Ammonia hose in LP Gas, Natural Gas, or refrigeration applications.
