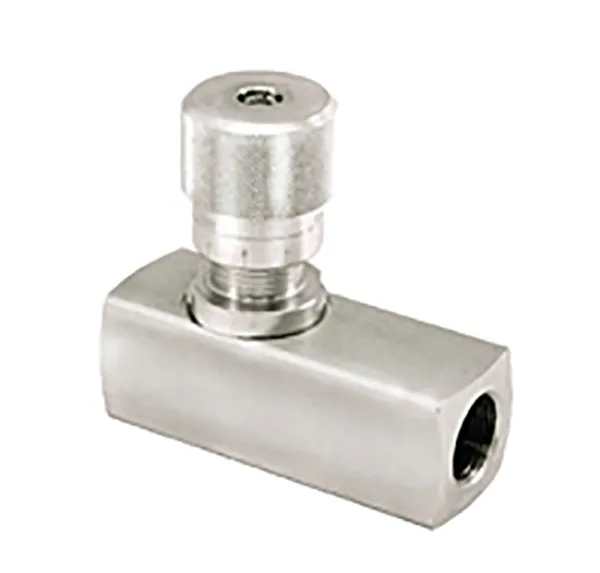

Carbon Steel Flow Control Valves FN1-4-1

Carbon Steel Flow Control Valves FN1-4-1

Carbon Steel Flow Control Valves FN1-4-1

  • NPTF & SAE Connections.
  • Carbon Steel with Zinc Chromate Plating (RoHS Compliant).
  • Set Screw Allows Knob to be Locked into Position.
  • Graduated Knob & Spindle for Accurate Flow Control.
  • 7 PSI Standard Spring Setting.
  • Buna O-Ring/PTFE Stem Packing.
  • Temperature Range -4 ºF to +176 ºF.
  • For hydraulic use only. Consult factory for fluid compatibility.

Specifications

Thread Type

NPTF Pipe Thread

Thread Size

1/4 in

Material

Carbon Steel

Dimension B

2.600 in

Dimension D

1.180 in

Dimension E

2.670 in

Dimension F

0.980 in

Maximum Pressure

5700 psi

Maximum Flow

4 gpm

Weight

0.83 lb

Temperature Range

-4 to +176 ºF

Industry Standards

RoHS Compliant

Plating

Zinc Chromate

Standard Spring Setting

7 psi

Stem Packing

Buna O-Ring/PTFE
