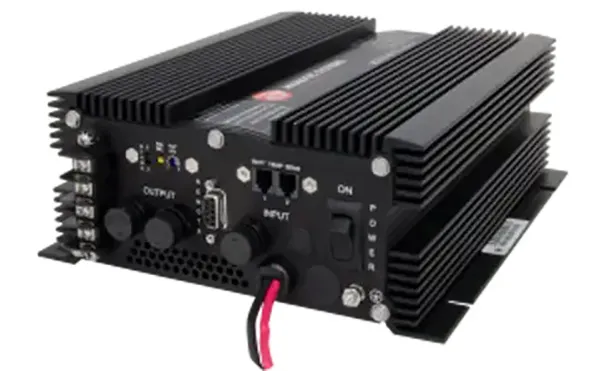

Voltage Converters

Voltage Converters

Common Negative or Fully Isolated DC to DC models to convert or regulate DC voltages from 12 to 400 volts IN to DC voltages from 12 to 72 (rail) volts OUT at power levels from 100 to 1500 watts. Models are available to step-up, step-down, stabilize or isolate DC power over a range of 12 to 360 volts. No matter which unit you need, these easy-to-install Voltage Converters will give you many years of reliable service.

Analytic Systems’ modern DC/DC Voltage Converters use efficient filtering, allowing for ultra-quiet operation. In addition, our converters are:

• Made from marine-grade aluminium extrusions or heavy-gauge aluminium sheet metal
• Powder-coated or anodized, and use stainless fittings throughout
• Fitted with robust circuit boards using expensive heavy-gauge copper conductors, designed by Analytic Systems’ engineers and assembled in our plant

Analytic Systems manufactures two different kinds of DC-DC Voltage Converters.

• The first is Common Negative, where the input and the output share the same ground. These do not typically use a transformer and are less expensive to build. Models are available to step-down (Buck), step up (Boost), or a combination of step down and step up (Buck-Boost).
• The second is Isolated, where a high frequency transformer is used to provide electrical isolation between input and output. These are typically used where there are different grounds for the input and output voltages, or if there is a large difference between the input voltage and output voltage.
