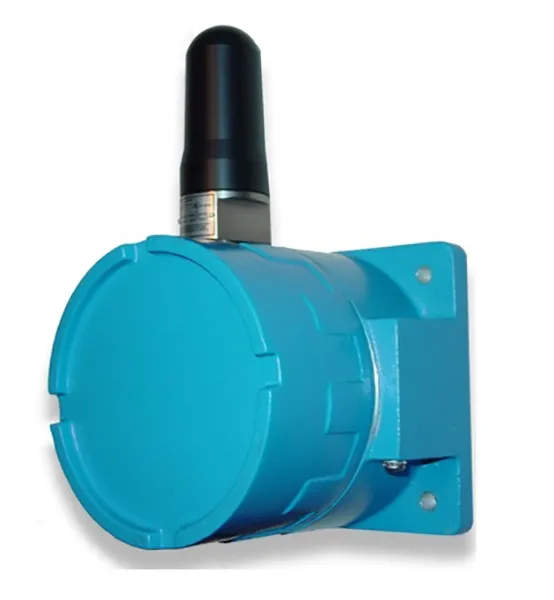

WEN Series Hazardous Area Wireless Enclosures

The WEN series of hazardous area wireless enclosures include our proprietary CTX antenna and a Class I, Div 1 enclosure. This allows the end user to quickly configure their own wireless products for use in the hazardous area. RF cables to connect to your electronics are available.

The WEN-RT is designed to enclosure wireless transmitters, receivers or transceivers for use in the hazardous area. The enclosure includes a Class I, Division 1, Groups C & D explosion proof antenna and a cast aluminum explosion proof enclosure.

Typical applications include cellular (dual band) and 802.11 (Wi-Fi) as well as 900 MHz. Options include window and extended depth.

A variety of other enclosures are available, contact Analynk Wireless to discuss your needs.

Specs:

• Use your electronics in the hazardous area
• Industrial temperature range -40oC ≤ Ta ≤ +85 oC
• 450-470MHz, 900MHz, 2.4GHz, 5GHz (dual bands
• available)
• Optional window & Extended Dome
• Suitable for Class I, Division 1, Groups C & D and Class I, Zone 1
• Rated for -40C to +85C

Applications:

• Hazardous tank level monitoring
• Offshore platforms
• Chemical processing
• Power plants
• Utility systems where explosive gases may be present
• PCS, AMPS, GPRS, 802.11
• Wireless bridges
• Wireless Ethernet
• Pharmaceuticals
• Oil refineries
• Oil & Gas Platforms
• Chemical Plants

WEN Ordering Information

• WEN-401-NW 450MHz-470MHz no window
• WEN-900-NW 900MHz, no window
• WEN-2400-NW 2.4GHz, no window
• WEN-2402-NW 2.4/5GHz, no window
• WEN-5000-NW 5.0GHz, no window
• WEN-401 450MHz-470MHz with window
• WEN-900 900MHz, with window
• WEN-2400 2.4GHz, with window
• WEN-2402 2.4/5GHz, with window
• WEN-5000 5.0MHz, with window
