AC Threaded

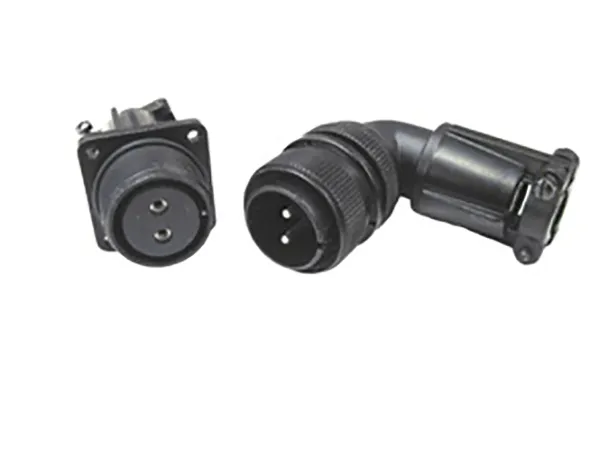

AC Threaded

Cylindrical, Multi-pin, Metal, Threaded Coupling, for use in Benign and Harsh Environments, Power Connector.

The AC Threaded series is a commercial derivative of the MIL-DTL-5015 product that has been used for many years in military and industrial applications. It is a low cost connector with fine threaded coupling for use in benign and harsh environments. With over 286 insert arrangements available from 1 to 85 circuits and up to 150 amps per contact. The available arrangements allow for the mixing of power and signal contacts, signal only or power only. Contacts are available in solder, crimp or PC termination with silver or gold plating (see part number deviation in catalog). Thermocouple and coax contacts are also available.

Features & Benefits

· Rugged aluminum shells

· Durability and reliability

· Environmentally acceptable shell plating options – Conductive and non conductive

· Single key/keyway shell polarization

· Five shell styles in sizes 10SL to 40

· Threaded coupling

· Various back shells

· Over 275 insert patterns available

· General duty and environmental versions

· -55 ° C to + 125 ° C operating temp. range

· Low Smoke and Fluid Resistant inserts available
