SpiralVeyor SV Series

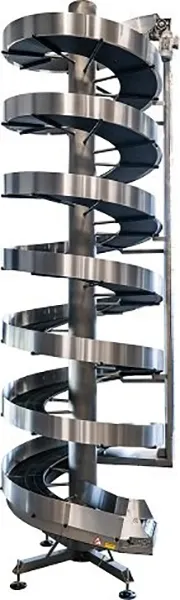

SpiralVeyor SV Series

The SpiralVeyor SV is the all-purpose spiral conveyor for medium to large sized products. It is ideal for handling secondary packed products and cases in logistics and is used for multiple functions ranging from elevation up to accumulation.

The lateral roller system patented by AmbaFlex is simple and reliable, and renders controls and sensors superfluous. The continuous motion represents the perfect solution for theexacting situations involved with unstable products and high production speeds. With its installed base of thousand machines worldwide (including demanding multinational clients), the AmbaFlex SpiralVeyor SV sets the standard for industry.

Suitable for goods:

Cartons, containers, trays, bottlepacks, bags, crates and totes

Details

• Belt width range: 300-600 mm | 12-24"
• Multi-belt: 1-3 parallel belts
• Load range: per belt, up to 50 kg/m | 34 lb/ft
• Speed range: standard up to 60 m/min | 200 fpm
• Elevation: virtually unlimited, commonly per drive system 15 m | 50 ft
• Belt length: up to per drive system 60 m | 200 ft

Material

• Dry use
• Wipe down (R)
• Wash down economic (CR)
• Wash down total (RS)
