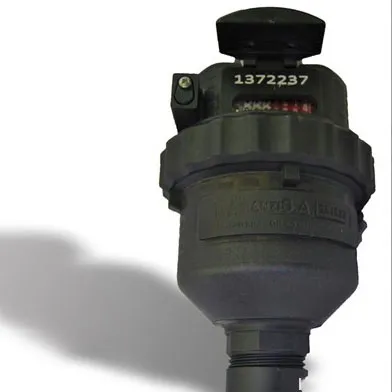

SA1527 Class C in-line Mechanical Water Meters
Automated Meter Reading (AMR)-enabled Water Meters
Our product designers have successfully combined the proven, high-precision measuring insert with a high quality and robust meter body designed for harsh African conditions. The result is the innovative Amanzi SA Water Meter, which is pulse enabled, and ready to combine proven standards with new technologies. Amanzi Meters collaborates closely with its main shareholder, Sebata Municipal Solutions, to provide a complete meter-reading and data-management solution to meet the increasing demands on water utilities.
Application
The meter is used to measure the volume of cold potable water passing through the pipeline. The meter is fitted with a non-return valve that will allow water flow only in the direction as indicated on the meter. These volumetric meters are not influenced by flow disturbances upsteam of the meter. It is designed with a grooved piston within the measuring chamber.
Meter stoppages are reduced by the grooved piston which creates a swirling action or turbulence (flow eddy) to suspend solids or particles, until flushed out.
Product Features
Rugged and approximately 50% lighter than bras- bodied meters
Body made from industrial grade, glass-filled nylon
UV- and corrosion-resistant body
Grooved piston for optimum performance
Working temperature 0°C – 50°C
Operating pressure PN16
Low starting-flow rate and high sensitivity throughout a wide flow range
Internal non-return valve and strainer
Counter with protected rollers for long-term clear reading
Liquid sealed counter to prevent condensation and misting
Mechanical drive with direct transmission from measuring chamber to counter ensures standard protection against magnetic manipulation or tampering
Grooved piston which creates a swirling action or turbulence (flow eddy) to suspend solids or particles until flushed out, reducing meter stoppages
Pulse prepared for remote read-out and communication
Latest technology reed switch for optimum performance
