AM Equipment

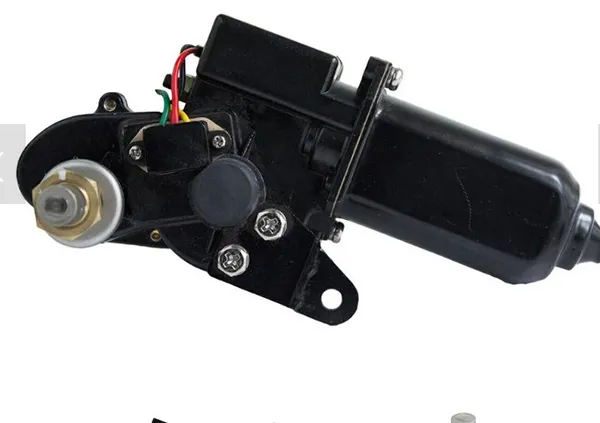

212 Series Assembly

Up to 53 cm (21") wiper arms / Up to 56 cm (22") wiper blades

• Single-speed, 12 Nm stall torque motor
• 12 V or 24 V
• Radial or pantograph sweep pattern
• Standard RFI suppression and circuit breaker
• Clockwise or counterclockwise park available
• 65°, 85°, 100°, or 110° sweep angles
• 25 mm (1"), 50 mm (2"), or 75 mm (3") pivot shaft lengths
• 1/2" knurled drum interface
• Simple click-in wiper arm and blade installation
• Performs well in marine environments
  • Motor has a water-resistant case that also covers all linkages
  • Stainless steel shaft encased in threaded brass improves water and corrosion resistance
