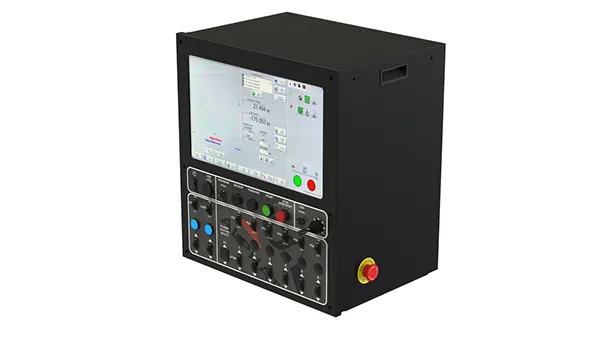

CNC CONROLLERS HYPERTHERM PLATFORM

Edge Connect Platform Control Offers

• PC Based / Windows 10 Operating System
• AC Brushless Drive Packages offered in (3) Configurations Internal (400w &750w) & External (1500w)
• 2, 3, or 4 Axis Input Configuration
• 19” Wide -Color LED Touch Screen
• Integrated Operator’s Control Console provides Plasma/Oxy and Auxiliary functionality, based on customer requirements
• 8-Directional Joystick
• Standard Shape Library
• Front Panel USB & Wireless Network Kit
• Remote Diagnostics​
• Maximum Plasma Stations  8
• Maximum Oxyfuel Stations 12

Alphatek “Packaged” Solutions (may include) :Associated Interface Cables & Connector Kits, Planetary Gearboxes, Motor Mounts, Drive Pinion Gears, Wiring Diagrams/Schematics, Laser Pointer, Hypertherm CNC Nesting, True Hole, etc.Power Requirements :​

• EdgeConnect (Internal Drive Configuration) Single Phase,  (208V, 220V, 230V or 240V) power @ 30A
• EdgeConnect (External Drive Configuration) 3-Phase, (480V) power @ 20A
