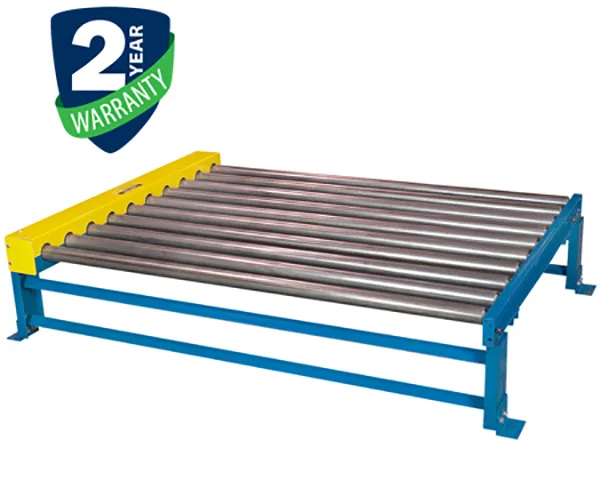

Chain Driven Live Roller conveyor with 1.9” diameter rollers

Chain Driven Live Roller conveyor with 1.9” diameter rollers

Alba’s CDLR conveyor with 1.9” diameter rollers is best suited for conveying light to medium-duty product. They are an excellent choice in conditions where there is dirt and oil. Standard effective widths range from 12” to 48”. Standard conveyor lengths are nominal 5 ft. and 10 ft. sections with 2-1/8”, 2-3/4”, 4”, or 6” roller centers.

Quick Features

Standard Models
2-1/8″, 2-3/4″, 4″, or 6″ Roller Centers
RC-40 Roller to Roller Chain
9 Gauge and 12 Gauge Roller Tube Thickness

Product Features

Length: Standard 5′ and 10′ Sections
Width: 12″ to 48″ Effective Widths
Drive Configurations: Underslung, High Side and Low Side Drive Mounting Available
Drive Capacity: Up to 3,500 lbs. on some Models
Rollers:
- 1.9″ Diameter x 12 Gauge Wall, 7/16″ Hex Axles Pin Retained
- 1.9″ Diameter x 9 Gauge Wall, 7/16″ Hex Axles Pin Retained

*Rollers can be set high or low on non-driven side.

Note: Specifications vary by model. Call for More Details.
