AirPro, Inc

CaptiveAire complete solution of fans heaters ductwork and HVAC equipment

CaptiveAire

CaptiveAire provides a complete solution of fans, heaters, ductwork, and HVAC equipment. The customized make-up air systems are designed for 100% outside air applications. For over 40 years, CaptiveAire has led the industry with innovative technologies, unmatched service, competitive pricing, and short lead times. Explore our products to discover how we can help you maximize efficiency and achieve exceptional indoor air quality.

Units Available

• Direct Fired Heat with Cooling Package
• Indirect Fired Heat with Cooling Package
• Electric Heat with Cooling Package
• Heat Pump Option – Ideal for small heating needs and where gas is not available
• Cooling Only Configurations
• AC Option – Sized for 150-300 CFM/ton of Cooling
• AC Option with Warm Liquid Reheat – Sized for 150-300 CFM/ton of Cooling and Dehumidification

Features

• High Efficiency Nominal 14 SEER Rating Condensers
• Integral Cooling Staged Thermostat
• Multiple Stage cooling for lower energy usage
• Pre-Piped and Charged Refrigeration Circuits
• Optimized for 100% OA for kitchen use
• Cooling requires no additional roof footprint
• Coils and Condensers sized to comfort cool make-up air
• R-410A Environmentally Friendly Refrigerant
• Thermal Expansion Valves and Filter/Dryer Kits
• External Equalization Lines for Thermal Expansion Valves
• Hard Start Relay Kits on the Condensers
• Condenser Disconnect Switch
• Vacuum Tested and Leak Checked Lineset/Coils
• Condenser Transformer Prewired
• Thermostat Prewired and Interlocked with Heater
• Integral Weather/Hail Guards

Optimized for high efficiency

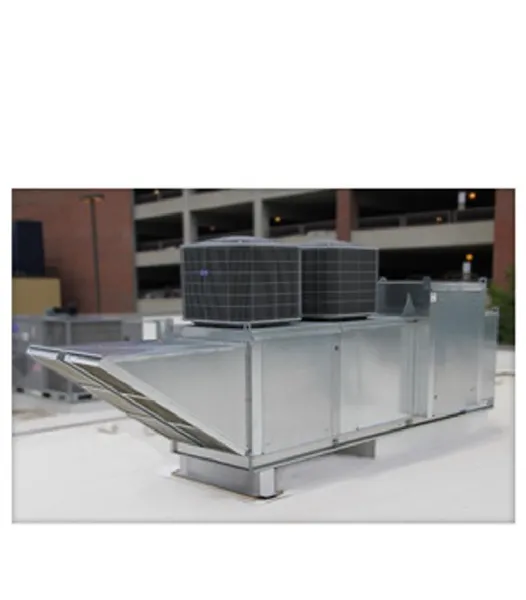

Modular packaged cooling unit

The modular packaged cooling unit is optimized to work in conjunction with highly efficient make-up air delivery methods, such as perimeter supply plenums. The unit can either have a down or end discharge, and can be used with both electric and gas heat. All refrigerant is environmentally friendly R-410A and condensers have a nominal SEER rating of 14 for greater efficiency.

One benefit of this unit is the multiple cooling stages. Multiple cooling stages increase the efficiency by not using 100% of the cooling capacity when this is not needed, thus allowing lower energy usage. An internal make-up air cooling thermostat automatically energizes the first stage when cooling of the make-up air is required. The same thermostat has a built in adjustable differential to energize the second stage of cooling when required. The condensers are top mounted on the make-up air unit to minimize roof space requirements, and are situated for optimal airflow and serviceability.
