Airfoil Manufacturing Pty Ltd

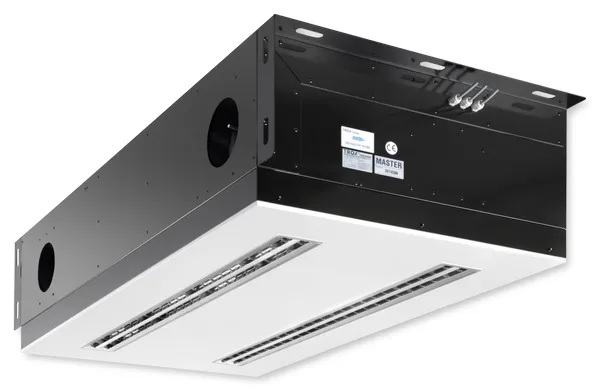

SchoolAir-D

Ready-to-operate decentralised ventilation unit that provides good comfort levels, used for the ventilation and extract ventilation of rooms such as classrooms in schools

• Acoustically optimised EC fans with low specific fan powers, SFP-1 according to EN 13779
• Plate heat exchanger for heat recovery (air/air), including bypass damper with electric actuator (open-close)
• Heat exchanger for heating and cooling as 2-pipe or 4-pipe system
• Reduction of fine dust and pollen contamination due to integral filters; F7 fresh air filter
• The condensate drip tray is useful if the temperature temporarily falls below the dew point
• Motorised shut-off dampers, normally closed (NC)
• Installation without interruption to the operations of the respective school
• Easy filter change, no tools required

Optional equipment and accessories

• Modular control system FSL-CONTROL II, specially for decentralised ventilation systems
• Demand-based fresh air volume, free cooling and night purge, depending on control strategy
• Automatic switching to secondary air mode (based on air quality)
• Variable heat recovery
• Powder-coated RAL 9005 (black, casing) or RAL 9010 (white, cover)
