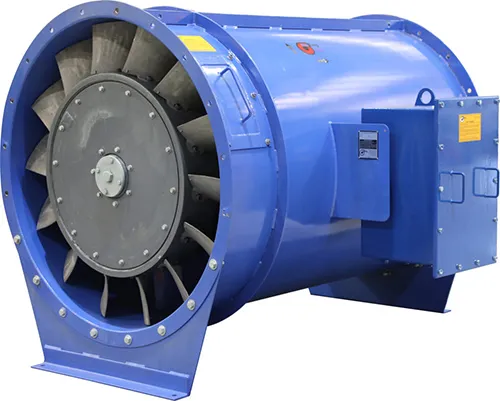

Secondary Auxiliary Fans

The ‘Cyclone’ range of Secondary Mine Ventilation fans comes in standard sizes from 610mm to 1400mm. The fans are available in Single Stage or Two Stage (contra-rotating or co-rotating) configurations with flows from 6m³/s to 60m³/s and pressures from 1.3kPa to 7.4kPa. AirEng can also provide design and engineering services for non-standard applications, so please contact our team for more information.

Standard Features:

• High Aerodynamic Efficiency

• Variable Pitch Blades

• Fabricated Steel Hub and Aluminium Cast Blades

• Heavy Duty 1000V WEG Motors

• Motor Thermal Protection

• Heavy Duty Flexible Anaconda Conduit to Terminal Box

• Top Stiffening Rail with Provision for Lifting Shackles

• Robust Casing Construction

• Externally Mounted Terminal Box & Guard

• Externally Mounted Thermistor Box

• External Greasing Points

• Inspection Door

• Removable Guide Vane Section

• Directional Arrows

• Stainless Steel Nameplate with Serial Number

• Lifting Points Marked

• Heavy Duty Industrial Coating – B21 Blue
