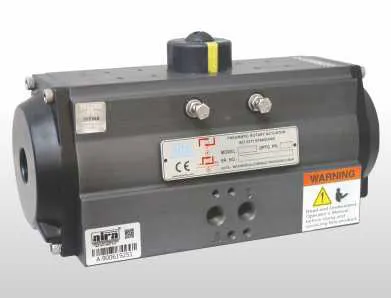

Pneumatic Rotary Actuator Double Acting As Per ISO 5211

Pneumatic Rotary Actuator Double Acting As Per ISO 5211

SPECIFICATIONS

• METHOD OF TRANSMISSION - RACK AND PINION TYPE
• ACTUATION - DOUBLE ACTING
• BODY - EXTRUDED ALUMINIUM HARD ANODIZED
• CAPS AND RACK - ALUMINIUM PRESSURE DIE CAST
• PINION - EN 8
• SEALS - BUNA – N / Viton
• AIR PRESSURE - NORMAL AIR SUPPLY PRESSURE: 4KG/CM² MAX, AIR SUPPLY PRESSURE: 8KG/CM²
• ACTUATOR DESIGN - ISO 5211 (ACTUATOR CAN BE QUICKLY AND EASILY MOUNTING)
• ROTATION - 90° / 180° ROTATION
• TORQUE - UP TO 13673 NM
