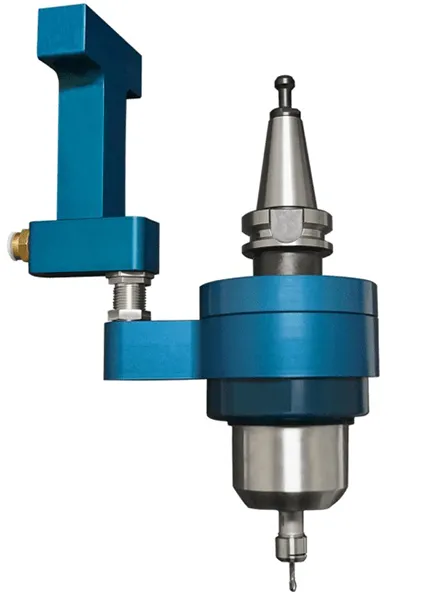

625XDT Drill-Tap Series

625XDT Drill-Tap Series

Just fit the new, patented, double turbine 625XDT Series spindles to your Drill-Tap machine magazine for automatic tool changing and increase production. Air Turbine Spindles® Air Supply Adaptor manifold block connects to the machine spindle housing, via the automatic tool change, to supply air at 90 psi (6.2 bar) to the powerful, direct-drive turbine motor.

Increase milling and drilling feed rates resulting in higher productivity with no duty cycle for true 24/7 unattended production – 30,000, 40,000, or 50,000 rpm up to 0.76 hp (0.57 kW).

For automatic loading from the Drill-Tap magazine, install the spindle-mounted manifold block and align the nozzle to the block connector, which supplies the spindle air to a clean, dry 90 psi (6.2 bar) air supply.

For manual loading installation of the spindle, the side NPT adaptor simply connects to an 8mm ID.
