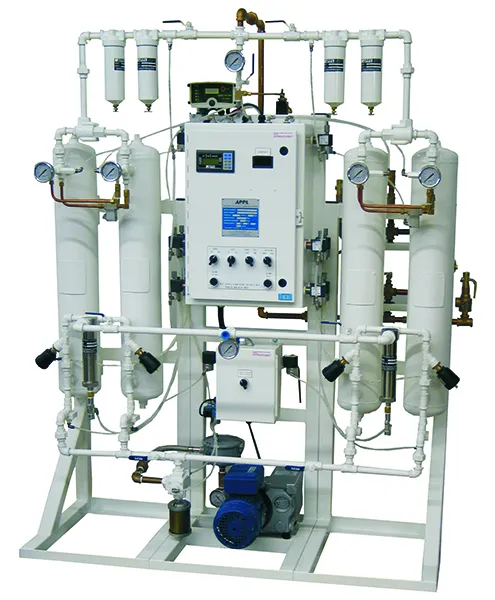

Duplex Medical Air Dryers

Duplex Medical Air Dryers

Designed and built to comply with the requirements of CSA Z7396.1-15 Medical Air Dryer standard.

Features

Coalescing pre-filters with automatic timed auto drain valves
Housings have internal corrosion resistant electroplating (Optional stainless steel housings)
Particulate after filters remove desiccant fines and contaminants
Activated carbon final filters remove trace odours/contaminants
Brass/Bronze pipe and fittings for all interconnecting inlet and outlet piping, copper purge air line with brass orifice union
Isolation valves for easy maintenance: Remove each dryer/filtration set while the other remains in service
Pneumatically controlled poppet-style inlet switching valves with 3 year warranty
Colour HMI display/keypad PLC control
Password protection allows maximum user flexibility
ASME code compliant and CRN registered
Stainless steel inlet and outlet retaining screens

Inlet Switching and Purge Exhaust Valves

Standard Operation Features

Automatic dryer alternation every 24 hours ensures equal operating time
Automatically switch to standby dryer on alarm activation
“Purge Economizer Controls” with digital dewpoint display ensure maximum operating efficiency

Applications

Optional Features

Pre-piping of dual line regulator assembly and emergency reserve manifold:
Reduce installation time and space requirement
Mounting components on back of the system allows one air inlet connection to the system intake, and a single air output to the facility services
Emergency reserve system requires connection to a dedicated port between dryer outlet and dual line regulator inlet connection

Standard System Alarms
