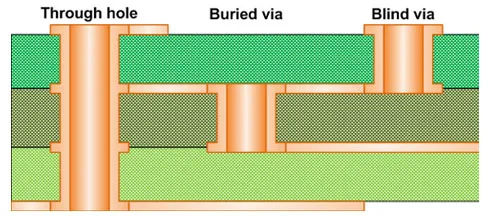

PCB vias can be classified into through-hole via, blind via and buried via.When you want to put enough PTH vias on a circuit board but the space is limited, blind & buried vias PCB might be a solution. Blind buried vias are used to connect between layers of PCB under restrictions of surface. Blind via is a plated hole that connects only one outer layer to one or more inner layers. Buried via is a plated hole that connects two or more inner layers, but with no connection with the outer layer.

Benefit of blind & buried via

• Could meet the density constraints of wires and pads on a design without increasing the layer count or board size
• Reduce PCB circuit aspect ratio

Blind/buried vias PCB, meet the density improvement of boards without increase number of layers or board size. Therefore, blind/buried vias are usually applied in HDI PCBs. It frequently used in mobile phones, wireless commination, MID. Notebook.
