Conventional Compressor Seal

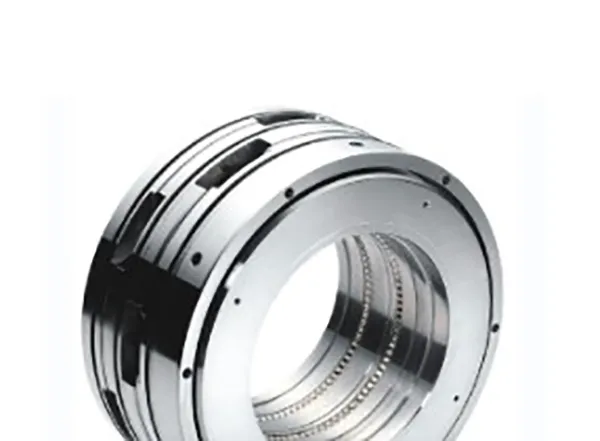

Conventional Compressor Seal

The CCS™ is a tandem cartridge seal where the inboard seal is designed to seal up to 82 bar (1200 psi), and an outboard seal that acts as a low pressure tandem seal.

The outboard seal is capable of full pressure containment in the event of full seal failure.

Features:

• Ideally suited for retrofitting wet compressor seals and bushings or as a replacement for existing Dry Gas seals
• Supplied in 410 stainless steel as standard with exotic alloy options on request
• Available with Silicon Carbide seats as standard. Tungsten Carbide and Silicon Nitride seats available on request. Mating faces available in Carbon and synthetic diamond coated Silicon Carbide
• ‘O’ ring and spring energized polymer versions available
• Designs available in single, double, tandem or tandem with intermediate labyrinth, for increased integrity
• Fully shrouded seats adopted as standard
