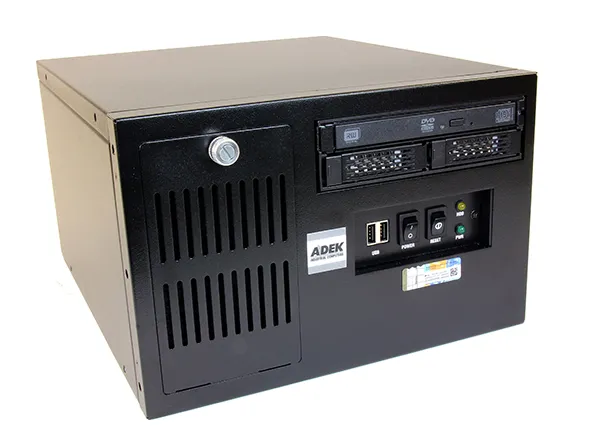

6-Slot Ultra Compact Panel Mount Industrial Computer

6-Slot Ultra Compact Panel Mount Industrial Computer

The AD-306 accepts up to 6-slot backplanes while supporting up to 3/4 length boards. Exceptional cooling is provided by a filter-protected 80 mm fan, where the filter is removable and washable. These systems are ideal for industrial environments where space is limited. An optional rubber gasket flange is available for mounting inside a wall or panel.

Features

• Accommodates up to 6-slot backplanes in a variety of slot configurations (accepts up to 3/4 length boards)
• One 80 mm cooling fan with removable filter
• External bays: 1 x 5.25"
• Internal bays: 1 x 3.5"
• One 5.25" bay for one slimline DVD/RW drive with up to two 2.5" removable hard drives, or one 3.5" internal hard drive
• Front Panel: Power switch, reset switch, LEDs for Power On/Off and HDD activity
• AC and DC power versions available
• Two front USB ports with room for more on rear
• Potential for serial and parallel ports on rear
• Dimensions: 10.63" x 12.7" x 6.90"

ADEK computers are custom manufactured to meet your specific requirements. All images represent typical configurations. Please contact us with your requirements and we will respond with a quote within 24 hours.
