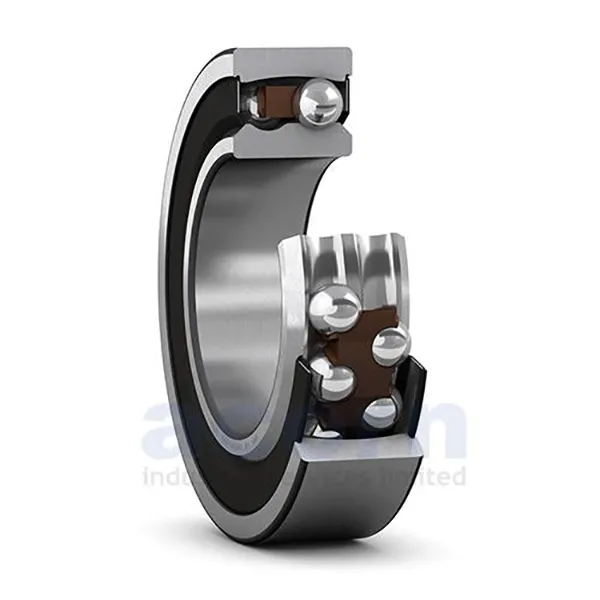

Self Aligning Double Row Bearing
Self-aligning ball bearings, with seals on both sides, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
• Accommodate static and dynamic misalignment• Excellent high-speed performance• Excellent light load performance• Low friction• Integral sealing results in reduced maintenance requirements and prolonged bearing service life
SPECIFICATION
Product Attributes
Manufacturer Product Code
2205 E-2RS1TN9
Basic Product Description
Measurement
Metric
UOM
Each
id (mm)
25
od (mm)
52
Width (mm)
18
Weight (Kg)
0.16
Sealing
Rubber seal on both sides
Bore Type
Parallel bore
Clearance
Normal Clearance (Cn)
Cage material
Polymer cage
Bearing Material
Bearing steel
EAN-Code
7316570025774
