SMT Assembly

SMT Assembly

Acme Circuit Boards Assembly starting doing electronics contract manufacturing for SMT assembly (SMTA) since year 1994. Manufacturing in Carson which is in 10 miles south of Los Angeles airport, CA. ISO 9001:2015 certified is a guarantee for all right process at EMS.

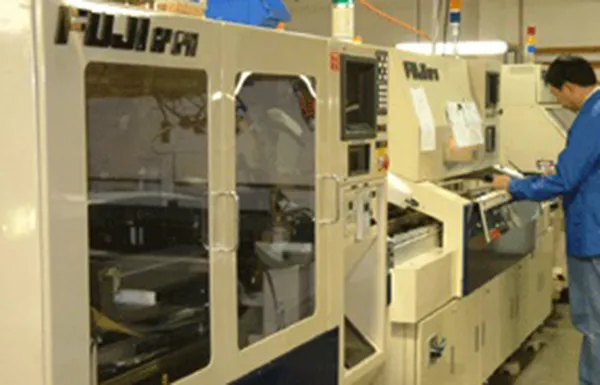

High speed pick & place machine set up for all median to large run SMT assembly (SMTA). It includes Fuji assembly line. X-ray inspection for high quality SMT Assembly (SMTA) purpose.  Fuji NXT, XPF-W, AIMEX III pick & place machines give us more flexibility for small run, and prototype board build up. We can do IPC 610 Class III if customer required, otherwise, all the PCB assembly (PCBA) followed by IPC 610 class II standard.

As usual, We keep additional capacity, shorter time-to-market and State-of-the-art manufacturing capabilities. Fuji NXT Surface Mount Technology (SMT) pick and place machine give us the capability to working on Surface Mount Technology (SMT) component package smaller than 01 005 which is 1/4 size of 0201 component.

• PCB shape and fiducial mark and other requirement is important for SMTA(A Fidutial Mark is an optical marker used as a reference by automated pick and place machine to ensure accurate placement of surface mount components).
• Reflow Pad design, Trace, and Via, please check
• Board size should be less than 18.5 inch x 14 inch for SMTA.
• Board thickness need between 20 mil to 160 mil for SMTA.
• Fiducial mark is a foil element on a Printed Circuit Board that is viewed by machine vision to determine the location of the (pad) pattern on the PCB. This allows a shown in their proper location. For the best results place fiducials near the bottom (more than 0.5 inch from the bottom) as far apart as possible, but not more than 13 inch apart. Put the first fiducial near the leading edge of the PCB. Please review  for more information.
• The Preferred Surface Mount Technology (SMT) board is one which has Surface Mount Technology (SMT) components on one side only. If all of the components are not available in Surface Mount Technology (SMT) form, Thru-hoe components on the same side as Surface Mount Technology (SMT) components is an acceptable solution
• Surface Mount Technology (SMT) components may be placed on both sides of the Printed Circuit Board (PCB) with additional components are also on the Printed Circuit Board (PCB); or if Surface Mount Technology (SMT) components are on one side of the board, and Thru hole components are on the other side, please contact our manufacturing engineer for specific guidelines for your application.
• In SMT assembly process, All Foil near a Surface Mount Technology (SMT) pad must be covered with solder mask, especially any traces that pass between components pads.
