Mini-Pinch
Mini-Pinch

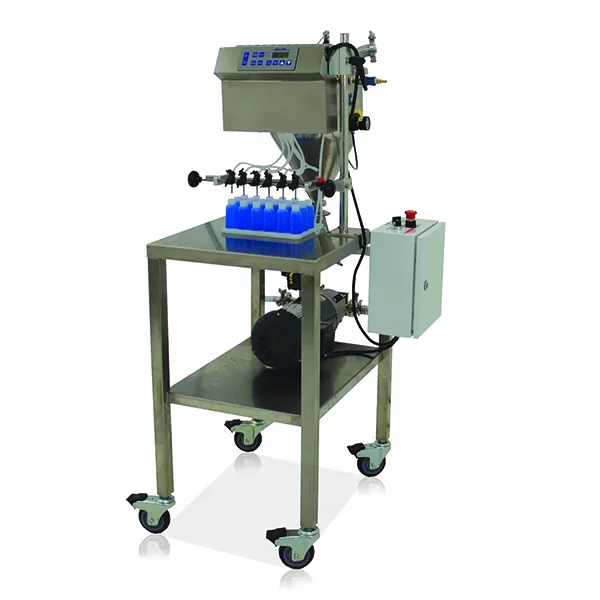

The Mini-Pinch is a filling machine best suited for filling aqueous solutions, thin and light oils. The Mini-Pinch is a six-head, timed flow volumetric filler that has a fill rate up to six ounces per second. An experienced operator can fill up to two thousand five hundred bottles per hour; it is also highly accurate even when filling 10 ml. Bottles.
The Mini-Pinch is a filling machine best suited for filling aqueous solutions, thin and light oils. The Mini-Pinch is a six-head, timed flow volumetric filler that has a fill rate up to six ounces per second. An experienced operator can fill up to two thousand five hundred bottles per hour; it is also highly accurate even when filling 10 ml. Bottles. This pinch valve filling machine can be autoclaved, and it’s available in a pneumatic configuration.
Our Mini-Pinch filling machines come complete with adjustable tabletop stand, fill wand, individual flow control adjusters, six stainless steel fill nozzles, silicone and vinyl food grade tubing, pinch valve system, an easy to operate microprocessor, and a pump.
Accutek manufactures a custom Mini-Pinch filler for high VG concentration E-Juice or Fill sizes above 30ml. This Mini-Pinch features larger four port manifold and nozzle upgrade which enables the Mini-Pinch to efficiently fill thicker solutions at a high rate of speed. This custom Mini-Pinch can be purchased at time of sale, and there is also a retrofit kit available for existing fillers. A customized Mini-Pinch is perfect for Chubby Gorilla, larger unicorn, or any larger plastic or glass containers for E-Juice.
Recommended products for this machine
Any aqueous free flowing liquid including; Water, fruit juices & extracts, liquid tea, liquid coffee, food coloring, vegetable oil, milk, tomato juice, some light salad dressings, perfumes, essential oils, ink, thin liquid soap, shampoo’s, light makeup remover, motor oil, urethane, silicone, urine, alcohol, and much more.
Features
- 6 Fill Heads
- Individual flow controls
- Sanitary stainless-steel manifold
- Microprocessor controller
- Positive displacement pump
- Electric and air operation
- Stainless-steel fill nozzles
- Stainless-steel construction
- Air Regulator
Options
- Custom bottle guides
- All pneumatic hazardous location upgrade
- 316 stainless steel nozzles
- Custom size / shape nozzles
Specs
|
Length:
|
33” (83.8 cm)
|
|
Depth:
|
4” (10.1 cm)
|
|
Height:
|
13” (33 cm)
|
|
Weight:
|
Approx. ~45 lbs. (20.4 kg)
|
|
Product Speed:
|
Up to 100 CPM1
|
|
Fill Size:
|
0.33oz – 16oz (10mL – 475mL)
|
|
Electrical:
|
110 VAC – 5amps
|
|
Air Requirements:
|
70 PSI @ 1 CFM
|
