AAEON

COM-TGHB6

COM-TGHB6

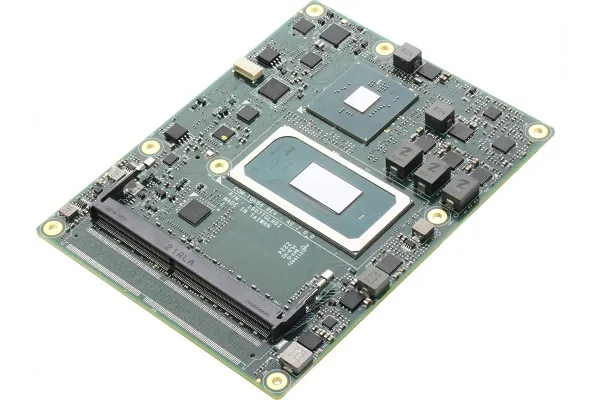

COM Express Type 6 with 11th Generation Intel® Xeon/Core™ Processor Family

Overview

COM Express Type 6 with 11th Generation Intel® Xeon/Core™ Processor Family

Features

• 11th Generation Intel® Core™ Tiger Lake-H Xeon/Core Series Processor
• Intel 500 Chipset series (RM590E / QM580E)
• DDR4 3200 MHz SODIMM x 2 (ECC Support), up to 64GB
• Intel I225LM 2.5GbE x 1
• VGA, 18/24-bit 2ch LVDS/eDP, DDIx3
• High Definition Audio Interface
• SATA3.0 x 4
• USB2.0 x 8, USB3.2 Gen2 x 4
• PCIe[x16] x 1 (Gen4) , PCIe [x1] x 8 (Gen3) , I2C, SMBus, LPC, TPM2.0 (Optional)
• 12V DC input
• PICMG COM.0 R3.0 Type 6, Basic size, 125mm x 95mm
