Air Operated Pinch Valves: A Comprehensive Guide to Reliable Fluid Control Solutions

Selecting the proper valve is the key when it comes to how well or ill an industrial fluid control application will run. They are used to open or close means of flow of liquids, gases, slurries and other materials and their ability determines safety and working capacity of various industries. Out of all of the various types of valves out in the market, the Pinch Valves have risen through the ranks due to its high performance in difficult and tough materials. Particularly, Air Operated Pinch Valves (sometimes known as Air Actuated Pinch Valves) are shown to be most reliable.

A broad understanding on Air Operated Pinch Valves, how they work, types; Directly Operated Pinch Valves and Directly Air Operated red Pinch Valves respectively, and their benefits in different operations will be explained in this article.

What is a Pinch Valve?

A Pinch Valve is also known as Squeeze Valve a particular kind of valve which is used to direct flow of the fluid by clamping up the flexible tube or hose. When it closes it pinches the tube and thus producing a barrier through which the fluid cannot pass though. When the valve opens, the tube is restored to normal, and the fluid, you or whatever is in the tube, is allowed through the valve.

The construction of a Pinch Valve is quite basic but the efficiency is not compromised. The flexible tube or hose is the only contact portion of the valve that makes these valves suitable for use in abrasive, corrosive or viscous material. In this case, the Pinch Valve has a shorter contact path of the body and fluid and does not have sophisticated internal parts that may wear out quickly especially for rough services.

What are Air Operated Pinch Valves?

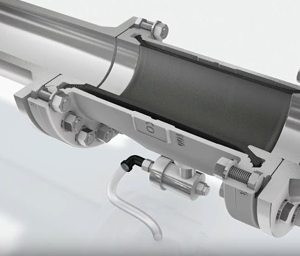

An Air Operated Pinch Valve is a variation of Pinch Valve wherein the pinching action is regulated by compressed air or another type of gas. Here, another sort of rubber tube with a casing, and the pressure of air is employed to squash the tube shut.

The flow of the fluid is halted when air is used and the tube is compressed. When pressure is removed the constriction tube becomes open and fluid flow is resumed as before through the tube. As a result of this methods of control, the Air Operated Pinch Valves are also referred to as the Air Actuated Pinch Valves. Such valves are preferable in those industries where automation and operation from a distance are required. This may be operated by hand when necessary otherwise pneumatic systems may be used in operating the valve and these are preferred when safety or convenience as a factor is an issue.

Key Components of an Air Operated Pinch Valve

The main components of an Air Operated Pinch Valve include:

1. Flexible Tube or Sleeve: This part is important; it can be an entire valve in many cases. It is made from material such as rubber, elastomers or other flexible polymer. The material used depends on the type of the fluid in the process to be controlled.

2. Valve Body: This is the outside cover that contains the highly flexible tube. The valve body can be made of aluminum, stainless steel or plastic as the situation required by the application or the condition that the valve will be used in.

3. Actuator: In an Air Actuated Pinch Valve, it is the actuator which remains responsible for regulating the flow of the air or the other gas which in turn compress a tube. As for its working, an actuator gets commands in the form of signals from a control system and controls the opening or closing of the valve.

4. Air Inlet/Outlet: This is the port through which air needed for the operation of the actuator moves in and out. In this case, air flow constricts the valve, and when air is out it opens the valve.

How Does an Air Operated Pinch Valve Work?

The function of an Air Operated Pinch Valve is quite simple as mentioned below. When air pressure is applied there is constricted pressure on the actuator to compress the flexible tube hence closing off the path of flow of fluid. It closes when the air pressure is kept on, and opens when the pressure is removed.

When the pressure is low or being reduced in any way possible, the flexible tube gets back to its initial state exposing the central opening through which the fluid can flow again in the valve.

Probably the greatest advantage of this type of valve is the fact that this valve is very simple in design. Air Actuated Pinch Valves are easy to maintain, very reliable and have very few wearing parts within the fluid path. This makes them ideal for high-drag service, where the fluid can be abrasive, corrosive, or contain particulate matter—or slurry—as this condition is likely to compromise the valve’s performance.

Directly Operated Pinch Valves and Their Variants

Directly Operated Pinch Valves are a subcategory of Pinch Valves, the operation of the flexible tube of which is performed by compressed air and without the use of any other mechanical link. This straight control provides quicker response time, as such, make Directly Operated Pinch Valves suitable for prompt operation.

Likewise, Directly Air Operated Pinch Valve means a valve meant to have the operation of the pinch accomplished entirely through direct application of air force without the necessity of employments of any extra actuating elements or parts. Such configuration makes it possible to achieve very readily controllable and provided non-demanding valves for the management of fluids.

Why Choose Directly Operated Pinch Valves?

There are several benefits to using Directly Operated Pinch Valves:

• Rapid Response Time: Since the air pressure makes a direct contact with the flexible sleeve, these type of valves provide fast operation, and thus, are preferred for use in systems that need frequent modification of the flow rates of fluids.

• Simple Design: Directly Air Operated Pinch Valves have no external actuators or other moving parts and can be one of the simplest, most long lasting and cheapest.

• Reduced Maintenance: Most products have more components, fewer options provide fewer opportunities for damage or wear. In the case of the fluid only touching the sleeve, other parts of the valve do not suffer from wear through corrosion or abrasion.

• Versatile Application: These valves are normally used in applications like the food industry, chemical industry and water utilities amongst others hence are important when it comes to the flow of fluids.

Advantages of Air Operated Pinch Valves

For these reasons, Air Operated Pinch Valves have gained acceptance in the many industrial sectors. Some of the key advantages include:

1. Handling Abrasive and Corrosive Fluids

The flexibility which an Air Actuated Pinch Valve offers also make is the reason why one should choose an Air Actuated Pinch Valve especially when working with difficult fluids like slurries, abrasives or corrosive chemicals. Since the fluid is only coming to the contact of the flexible tube, the valve body and any other part of the valve is protected from corrosion or wear by the fluid.

2. Minimal Maintenance Requirements

Air Operated Pinch Valves, in which no internal mechanical parts come into contact with the carried fluid, are easier to maintain than valves. They are long lasting because only the flexible sleeve may require replacement every now and again, meaning these are very cost effective in the long haul.

3. Reliable Shut-Off Capabilities

Air-operated pinch valves provide very good shutoff characteristics, including thick, highly viscous or slurries of solids. It also means that the distal end of the flexible sleeve is fully closed giving it a tight fit.

4. Suitability for Automation

These are most suitable for use in automatic systems than manual ones. Consider for example, the use of motor vehicles. Pneumatic control interfaces can easily be integrated into the pneumatic control systems, they can be operated from a distance and they are recommended for use where the manual control would be inconvenient or even lethal.

5. Versatile Use across Industries

• Pinch Valves, especially Air Operated Pinch Valves, are versatile and used in a wide range of industries, including:

• Water and Wastewater Treatment: for the more complex and difficult flow applications like slurry services.

• Chemical Processing: For handling aggressive and corrosive intermediates.

• Food and Beverage: Used in the control of fluids, dry bulk materials, and slurries, respectively.

• Pharmaceuticals: In all those methods where sterility and contamination control of work appliances and instruments form part.

Conclusion

Air Operated Pinch Valves or Air Actuated Pinch Valves are best fluid control product that using mainly in industries processes where it has to handle abrasive, corrosive or slurry type material. Because of their low complexity, low upkeep needs, and resistance to harsh fluids, these valves may be a cost effective solution for many industries.

Directly Operated Pinch Valves as well as Directly Air Operated Pinch Valves come with the extra advantage of receiving quicker reactions and an easier operation that makes it ideal for use in industries where precise and toughness is prized. Selecting the right type of valves for your particular fluid control application is one of the decisive steps to dominate with efficiency and secure prolonged viability, and the Air Operated Pinch Valves are one of the best options possible to achieve that objective.
