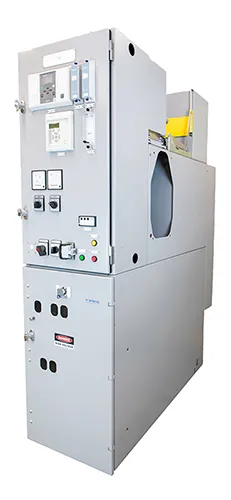

IEC 298 Single Busbar Panel
LMVP 12kV single busbar panel with withdrawable voltage transformer
The switchgear is housed in a Fixed Enclosure. This is a rigid sheet steel cubicle consisting of four main sections:
- Busbar and Current Transformer Chamber
The busbar chamber contains three-phase copper busbars rated at 1250A, 2000A, 2500A or 3000A.
The rear section of the chamber houses the current transformers which may be:
– Low voltage insulated, mounted on an earthed screened primary bushing, silica-filled epoxy resin insulated.
– Either bar or wound primary type depending on the specification.
– Current transformers comply with IEC 61869-1, IEC 61869-2.
The control cubicle houses the relays and control equipment, protection relays and instruments.
Air insulated cable boxes for heat shrink cable termination.
- Circuit Breaker Compartment
The bottom section houses the circuit breaker.
Guide rails allow smooth, safe and easy entry and removal of circuit breakers ensuring accurate location in the correct position.
Internal Arc Compliance (IEC 298)
LMVP CERTIFICATION
- A-FL (2.8m roof right), 20kA 1 sec.
- A-FLR (4m ceiling height), 25kA 1 sec.
