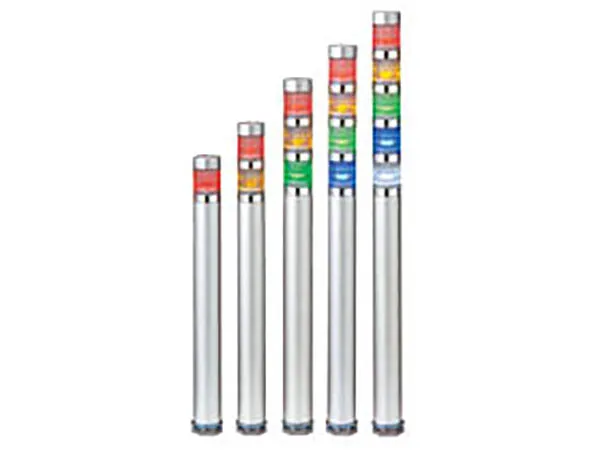

ME-A 25mm

ME-A 25mm

Features a super slim-profile design with a 25mm (.98") diameter and a 200mm body length for easy installation in tight spaces.

Product Features

Super slim design with superior visibility
Rearrange LED modules without having to rewire
Corrosion resistant aluminum body and impact, heat resistant polycarbonate lenses
LED units appear clear when off to prevent false indication from ambient light
IP65 water and dust resistance
NPN/PNP open-collector

Specifications

Dimensions	Φ25mm
Rated Voltage	24V DC
Functions	Continuous Only
Body Color	Silver
Body Style	Pre-assembled, pre-wired Interchangeable and stackable module after purchase
Stackable Tiers	Up to 5 LED units
Module Colors	Red Amber Green Blue Clear
Conformity Standards	CE Marking UL Recognized Component (US) c-UL Recognized Component (Canada) RoHS
Protection Rating	IP42 IP65 (PNP type)

Technical Specs
