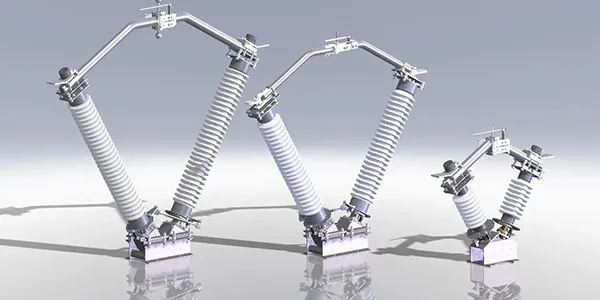

Center Break Slant

Center Break Slant

• Manufactured in either aluminum or copper
• Requires minimum overhead clearance
• Slanted insulators allow for minimum base mounting

Application: Substation & Transmission •

• Horizontal upright
• Vertical
• Underhung
• Phase over phase
• Phase opposite phase

Standard Features

• 1/2" Stainless Steel arcing horns
• Brazed silver-to-silver contacts
• Rigid tubular blades
• Stainless steel live parts hardware
• Stainless steel ball bearings 115kV and above
• Stainless steel shaft in bronze sleeve bearing 69kV and below
• Galvanized steel base

 Operator Option

• Swing handle
• Worm gear
• Motor operator

Accessories

• Whip type horns
• Single vacuum bottle interrupters
• Ground switches
• Counterweight as required
