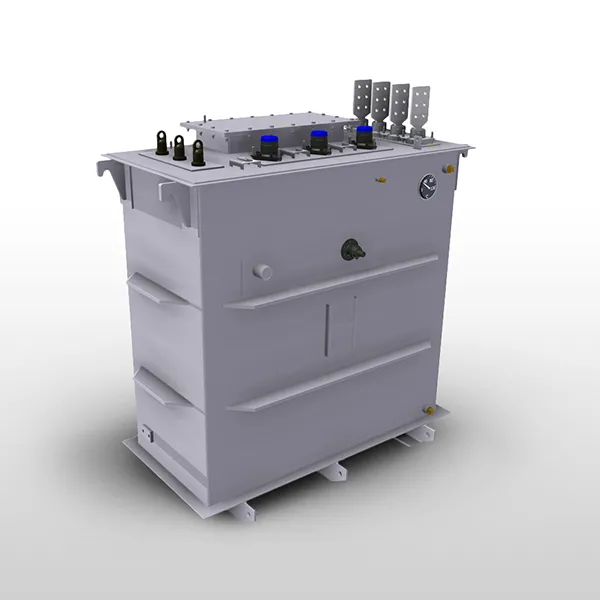

Single and Three Phase Submersible Transformer

Single and Three Phase Submersible Transformer

Design Capacities

• Single Phase: 25 to 167kVA
• Three Phase: 150 to 1000kVA
• Primary Voltage: Up to 34.5kV
• Secondary Voltage: From 120/240V or Step Up to 27.6kV
• Built to customer specications in accordance with CSA 301.1, C301.2 and C802.1 Energy Eciency Standards

Standard Accessories and Features

• Plastic Nameplate
• HV/LV Bushings
• Grounding Bracket
• Stainless steel tank
• Stainless steel hardware
• Parking Stand
• Lifting Lugs

Optional Accessories and Features

• Dual voltage selector switch;
• High voltage o circuit taps;
• High voltage fusing devices;
• High voltage bushing inserts;
• Secondary Breaker;
• Under oil surge arresters;
• Internal high voltage load break switches;
• Alternative protection devices, specied by the purchaser, that provide equivalent protection;
• Pressure relief device;
• FR3 re resistant bio degradable insulating uid LNAN;
