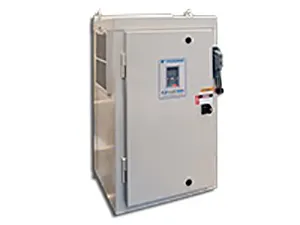

iQpump1000 Configured

iQpump1000 Configured

Configured Product for iQpump1000 Drive

The iQpump1000 Configured package provides an iQpump1000 in a NEMA 1 (UIL Type 1) or NEMA 12 (UL Type 12) or NEMA 3R (UL Type 3R)enclosure, with space for several commonly used options, such as reactors, RFI filters, circuit breakers, etc. The iQpump1000 Configured Package has been designed for flexibility in providing the features and options commonly requested.

This Configured package is designed for tough industrial environments. It is rugged and reliable. A variety of enclosure options provide the right environmental protection.

Features

Highlights

Ratings: 1 to 150 HP; 240VAC
1 to 500 HP; 480VAC
1 to 250 HP; 600VAC
Ratings: 50 to 500 HP, 480VAC
Ambient service temperature:
- NEMA 3R: -10°C to 40°C (14°F to 104°F)
- NEMA 12: -10°C to 40°C (14°F to 104°F)
Ambient storage temperature -20°C to 70°C (-4°F to 158°F)
Humidity: 0% to 95%, non-condensing
Altitude: to 1000 meters (3300 feet); higher by derating
Vibration: 0.33 mm (10 to 20 Hz), 0.22 G (20 to 55 Hz)
UL 508A (Industrial Control Panels)
UL, cUL listed
NEMA 3R
- Output cards
- Network communication cards
- Input breaker
- Input disconnect
- Input fuses
- Line/load reactors
- Bus reactor (for small HP ratings, see tables)
- Input filter
- Door-mounted operator controls
- Door-mounted keypad viewing window
- Conventional surge suppressor
- High energy surge suppressor
- Over voltage line disconnect
- Space heater
- 50°C ambient
NEMA 12
- Output cards
- Network communication cards
- Input breaker
- Input disconnect
- Input fuses
- Line/load reactors
- Bus reactor (for small HP ratings, see tables)
- Input filter
- Door-mounted operator controls
NEMA 12-Pulse Configured
- Output cards
- Network communication cards
- Input breaker (65k)
- Input filter
- Door-mounted operator controls
- Door-mounted keypad viewing window
- Conventional surge suppressor
- High energy surge suppressor
- Over voltage line disconnect
- Space heater
