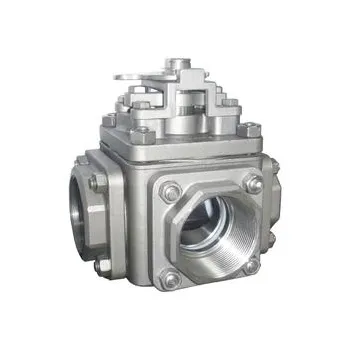

3 Way Threaded End Ball Valve

3 Way Threaded End Ball Valve

Yi Ming Machinery Ind Co Ltd offers an exclusive range of Ball Valves depending on types of end connections such as Flanged End Valve, Butt Weld End Valve, Socket Weld End Valve, and Threaded End Valve for the variety of industrial applications.

The 3 Way Threaded End Ball Valve is a Multi Port Series Valve produced by Yi Ming machinery Ind Co Ltd with three point end connection which is significantly used in piping systems that require low pressure. The functionality of Threaded End Ball Valves significantly increases when designed using Multi Port Valve models such as 3 Way, 4 Way, and 5 Way Valves. These Multi port valves are cost-effective and easy to assemble. The 3 Way Threaded End Valve comes in different sizes and specifications as mentioned below.

Features:


  • Size: 1/2" - 4"
  • Material: CF8M, WCB, CF3M, Duplex, Alloy, Hastelloy C, etc.
  • Rating: #150, #300
  • Seat / Seal: PTFE
  • Option: Ball for X-Port, T-Port, L-Port NACE MR0175 Seat/Seal of RPTFE, TFM, PEEK, 50/50, Graphite, 25% Carbon
