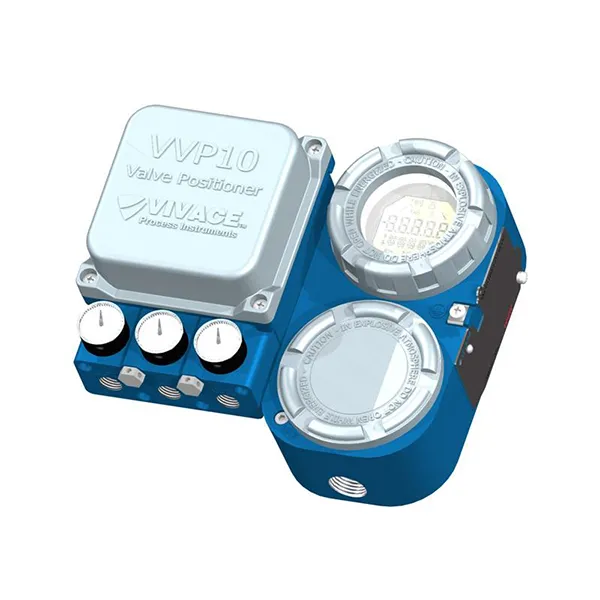

Valve Positioner VVP10

Valve Positioner VVP10 is a smart Positioner designed to work with linear or rotary valve actuators, providing precision and control with high availability and reliability. It is suitable for various types of valves, regardless of type and size. Valve Positioner VVP10 allows easy installation and commissioning.

VVP10 positioners are available in HART® 7 / 4-20mA and PROFIBUS PA technologies. HART® model has in its standard model the feedback signal (4-20mA) to indicate the current controlled position. VVP10 also offers a model with pressure sensor, digital inputs (limit switches), outputs (for alarms and safety solenoid valves) and advanced diagnostics that help to predict efficiently the need for maintenance.

Benefits:

Compact, high-performance, multifunctional
Designed to operate under severe conditions and high robustness with instrumentation air quality
Electronic coil technology
Non-contact position sensor (Hall sensor)
Suitable for most brands of valves / actuators
Single and double actions
Remote position sensor available for high vibration and high temperature applications
Auto-Setup, Auto-Tuning, Partial Stroke Test, Position Histogram and Advanced

Technical Specifications
Performance	Linearity: < ±0.1% Full Scale (using user table) Resolution: < 0.1% Full Scale Repetibility:< 0.1% Full Scale Hysteresis: < 0.1% Full Scale
Air Supply Effect	Negligible
Position Sensor	Sensor without contact, Hall effect, Local or Remote
Power Supply for Device	4-20 mA, no polarity
Power Supply for Position Feedback	12-45 Vdc (open collector), Isolation 1500 Vdc (Feedback 4-20 mA @12 bits, 4 uA resolution, 0.1% accuracy)
Communication Protocol / Configuration	HART 7 Remote configuration using EDDL or FDT/DTM tools. Local configuration using magnetic tool.
Classified Area Certification	Intrinsically Safe and Explosion Proof (pending)
Air Consumption	40 psi (2.8 bar): 6 l/min (0.21 cfm) 80 psi (5.5 bar): 9,5 l/min (0.34 cfm)
Flow Capacity	116 psi (8 bar): 283 l/min (10 cfm);
Setpoint Characterization	Linear, Equal Percentage, Quick Open and User Table (up to 16 points)
