Profibus-PA USB HART interface VCI10-UP

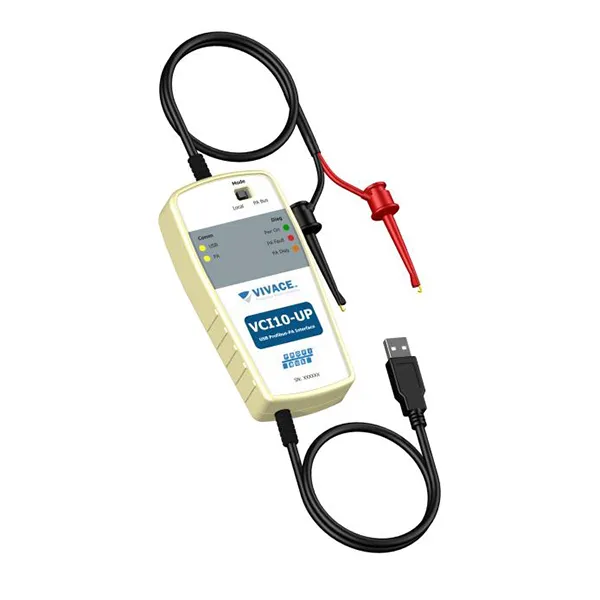

Profibus-PA USB HART interface VCI10-UP is a Profibus-PA communication interface for devices with USB type-A standard connection. It Allows connection to Profibus-PA networks making commissioning, operation, maintenance and calibration processes easier, as well as diagnostics and data acquisition of any Profibus-PA device.

It can operate connected into the Profibus-PA bus or in stand-alone mode. When in stand-alone mode it can power the device directly and there is no need for coupler DP/PA to establish the communication. This feature is very useful in bench work or in initial configuration when the Profibus-PA network is not yet established.

It operates at low power, with insulation and it is compatible with Profibus-PA protocol. The VCI10-UP is power by USB PC port, requiring no external power. In stand-alone mode eliminates the need for couplers DP/PA.

Benefits:

Innovative
Powered by USB
Low power
Isolated
For use with Profibus-PA protocol
When in stand-alone mode, it can power the Profibus-PA device
Applicable with tools based on EDDL and FDT / DTM technologies
Mobility with PC stations with USB connectivity
Class 2 Profibus master capability
Indicative LEDs to report the communication status and diagnostics
Simple, easy and intuitive use

Technical Specifications
Supply Voltage	Via USB port, 5 Vdc –USB 1.1 and 2.0 standards
Output Voltage	Open: 21 Vdc ; With load: 19.5 Vdc – 12 mA
Communication protocol	IEC 61158-2 standard, 31.25 kbits/s
Operational System Compatibility	Win XP, Win 7, Win 8, Win 8.1 and Win 10. (32 e 64Bits)
Connections to the bus Profibus-PA	USB connection standard for HOST (1.0m) and retractable clips for the PA side (1.0m)
Electrical insulation	Galvanic between the USB port and PROFIBUS-PA network
Housing material	injected ABS plastic
Dimensions	135 x 65 x 25 (mm)
