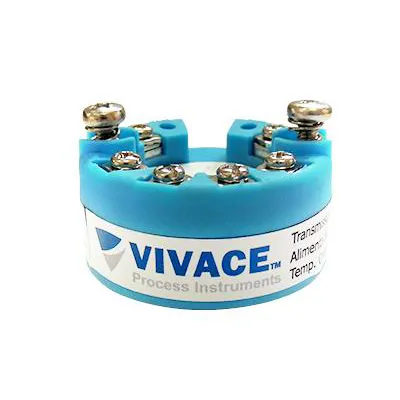

Head Mounting Temperature Transmitter VTT10-H

Head Mounting Temperature Transmitter VTT10-H is a temperature transmitter for head mounting - DIN Form B-compliant that generates 4 – 20 mA current signal (HART® 7 model) or a digital signal (Profibus-PA model), according to the measurement and user configuration.

The DTM Libraries for HART and Profibus-PA devices can be found on: HART Profibus-PA.

Main benefits of Head Mounting Temperature Transmitter VTT10-H:

High accuracy and long-term stability
Several types of measurement and sensors (T/C, RTD, mV and Ω)
Callendar–Van Dusen
- Environment temperature compensation
Self-diagnosis
HART® 7/4-20 mA and Profibus-PA communication protocols
NAMUR NE43 (HART® 7/4-20 mA model)

Technical and Physical Specifications
Accuracy	± 0.01% Calibrated Span
Power Supply / Output Current	12 to 45 Vdc, no polarity/4-20 mA according to NAMUR-NE43
Communication Protocol	HART® 7 and Profibus-PA
Certified HART® Modem	Hazardous Area Certification Intrinsically Safe (pending)
Ambient Temperature Limits	- 40 to 85°C
Configuration	EDDL and FDT/DTM tools, as well as PALM and Android® platform.
Assembly	Head Mounting according to DIN 43729 Form B
Protection Degree	IP00 / IP66 (Installed)
Electrical Isolation	Galvanic 1.5 kVac
Housing Material	ABS Plastic
Dimension / Approximate Weight	Ø 45 x 23 mm / 50 g
