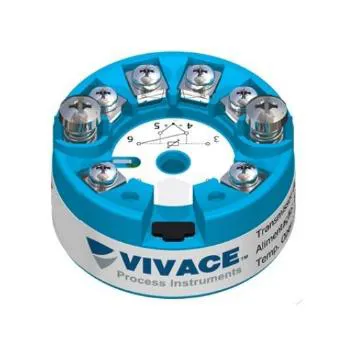

Head Mount Temperature Transmitter VTT01-H

Head Mount Temperature Transmitter VTT01-H is a low cost 4-20 mA temperature transmitter, designed for installation in DIN head form B. The transmitter is powered by a voltage of 12 to 35 Vdc and generates a current of 4 to 20 mA according to NAMUR NE43 standard. It has an isolated and not isolated model.

Head Mount Temperature Transmitter VTT01-H works with several types of sensors such as thermocouples and RTDs, plus resistance and voltage signals. The user can configure the sensor type, measuring scales, work units, calibration, measurement variables and check the transmitter status via VUI10 (USB communication).

Prioritizing its high performance and ruggedness, it ensures long-term reliability for systems of any scale as it is designed with the latest electronics and materials.

Technical and Physical Specifications:
Basic Accuracy	± 0.1% Calibrated Span
Power Supply / Output Current	12 to 35 Vdc / 4-20 mA according to NAMUR-NE43
Communication Protocol	Proprietary
Hazardous Area Certification	Not certified
Ambient Temperature Limits	- 40 to 85°C
Configuration	Via USB port and VTT01Tool software
Assembly	Head Mounting according to DIN 43729 Form B
Protection Degree	IP00 / IP66 (Installed)
Electrical Isolation	Galvanic 1.5 kVac (isolated model)
Housing Material	ABS Plastic
Dimension / Approximate Weight	Ø 45 x 23 mm / 50 g
