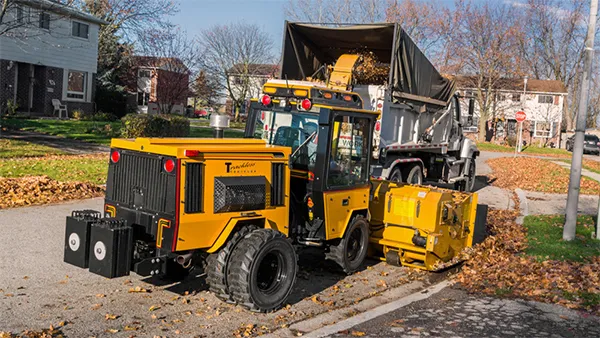

LEAF LOADER

Throat opening 72" (1828mm) x 35" (889mm)
Mulching rotor Full width with 44 knives
Beater bar feed roller 18 pairs of spring base type tines
Intermediate feed roller 32 tines, eccentric rotation
Cross auger 14 inch diameter
Blower fan 32" (813mm) x 7" (178mm) with 6 replaceable paddles and knives
Drive protection Torque limiting clutch on PTO shaft, over running clutch in gearbox
Drive PTO driven rotor and blower fan, hydraulic driven beater bar feed roller, intermediate feed roller, and cross auger
