Ultra Compact Din Rail Controller

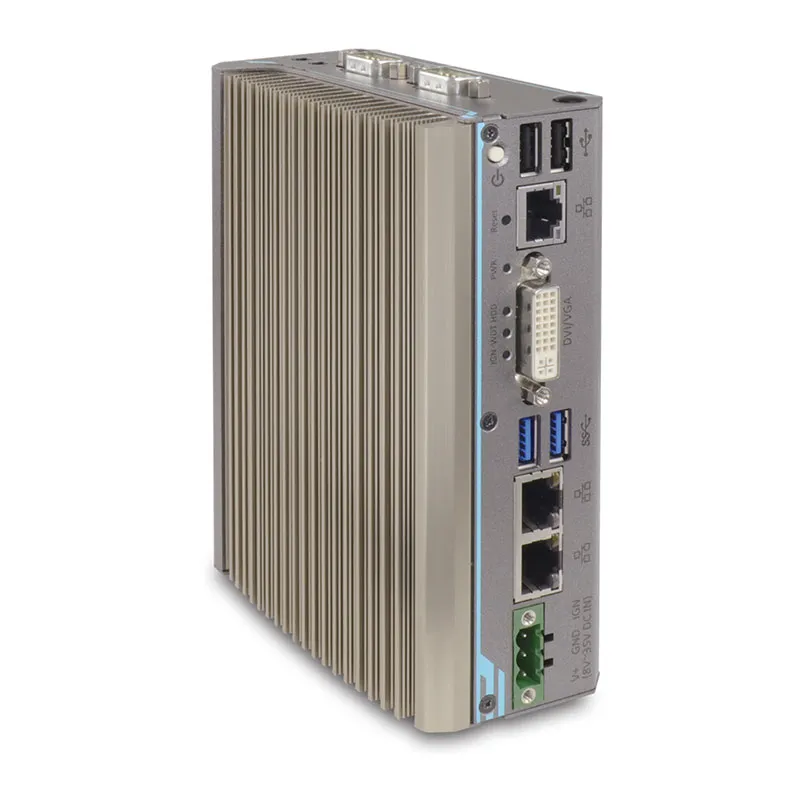

Ultra Compact Din Rail Controller POC-300 is an ultra-compact fanless embedded computer that features Intel® Apollo-Lake Pentium® N4200 or Atom™ x7-E3950 processor.

It is designed for DIN rail mounting with front panel I/O port access. This ultra compact Din Rail controller is easy to setup and is ideal for industrial applications where space is limited or placed in a 19 inch server cabinet.

Ultra Compact Din Rail Controller POC-300 provides rich I/O ports, it has one Gigabit Ethernet port, two 802.3at Gigabit PoE+ ports, two USB3.0 ports, two USB2.0 ports, one DVI-I connector for VGA + DVI dual video output, four COM ports and is compatible with Neousys’ MezIO™ interface.

This interface allows for the installation of an application-oriented I/O expansion module. The expansion module is a flexible and cost-effective way to customize an embedded system for dedicated applications.

As an industrial embedded computer, Ultra Compact Din Rail Controller POC-300 can function under 100% CPU load, under wide temperature settings ranging from -25? to 70?. It also accepts a wider range of power inputs from 8 to 35V DC and is fully tested for 24/7 operation in harsh environments.
