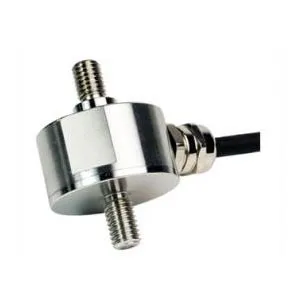

Compact size (Φ34mm), Wide Load Measurement Range of 0 to 1000kg, Robust Construction, Offers High Linearity of 0.5% Miniature Compression and Tension Force Sensor MLT61 Characteristics: Standard Measurement Range 50kg, 100kg, 200kg, 300kg, 500kg, 750kg, 1t
Output Signal 1.5~2 mV/V
Accuracy (combined LRH) 0.5% FS
Creep ±0.1% FS / 30min
Overload Rating 150% FS
Zero unbalance ±2% FS
