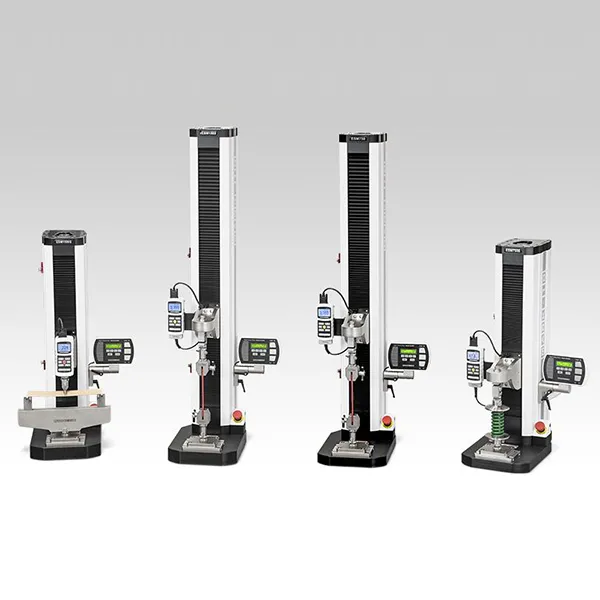

Motorized Test Stand Series MARK-10

ESM1500 and ESM750 single-column force testers are highly configurable solutions for tension and compression measurement applications, with capacities of 1,500 lbF (6.7 kN) and 750 lbF (3.4 kN), respectively. With generous travel and clearance, they are suitable for break testing, cycling, limit testing to a load or distance, loadholding,

ESM1500S	ESM1500	ESM750	ESM750S
1,500 lbF [6.7 kN]	1,500 lbF [6.7 kN]	750 lbF [3.4 kN]	750 lbF [3.4 kN]
14.2 in [360 mm] travel	32 in [813 mm] travel	32 in [813 mm] travel	14.2 in [360 mm] travel

Standard Features:

Broad force range and clearance dimensions
Compatible with load cells and force gauges
USB output of force vs. time or force vs. distance
Adjustable, removal control panel with intuitive menu navigation
Unique modular function platform - select functions as required for the application
Password protection of test parameters
Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
Compact footprint, suitable for crowded workbenches
Most electronics are housed in an integrated removable enclosure, easily accessed for service
