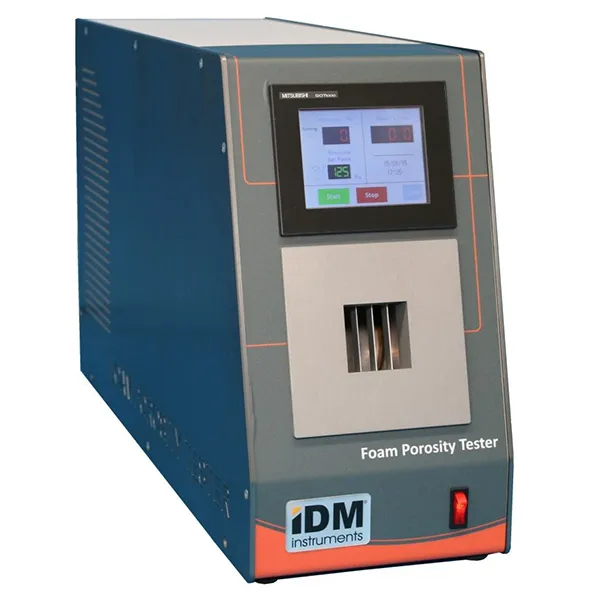

Automatic Foam Porosity Tester F0031

Automatic Foam Porosity Tester F0031 is used for monitoring the porosity of flexible cellular polyurethane. It can be used to determine the air passage flow through a cellular structure. To determine various cell structure characteristics, airflow values are used as an indirect measurement.

The F0031 model foam porosity tester is made with reference to international standards for measurement of a flexible cellular test piece, 50mm x 50mm x 25mm. It is placed in a vacuum chamber cavity and a specified automatic constant differential air pressure is applied.

The F0031’s Pa Pressure can be digitally set on the display and once the FPT reaches the Pa automatically the rate of airflow at the set Pa is locked in and (Held) on the Flow display automatically completing a test in seconds.

Applications:


• Flexible cellular polyurethane
• Visco Foams

Benefits:


• Able to measure Visco Foam (memory foam)
• Fast automatic results
• Quick and simple process
• Useful for Quality Control
• Precise, repeatable tests results
• Easy to use
• Accurate
• Reduction of rejects

Features:


• Touch Screen Operation
• Digital Manometer: 0-500 Pa ± 1%
• Variable Pa Range
• Automatic Pa control
• Automatic Flow reading hold
• Selectable Units L/min, CF/min
• RS232 Data Output
• Different Flow ranges available
• Test head area: 50mm x 50mm x 25mm

Dimensions:

• H: 375mm • W: 200mm • D: 650mm • Weight: 38kg

Standards:

• AS 2282.14 • ASTM D3574 - Test G • ISO 7231 • BS EN ISO 7231 • DIN EN ISO 7231 • EN ISO 7231 • JIS K 6400
