Gullco International, Inc.

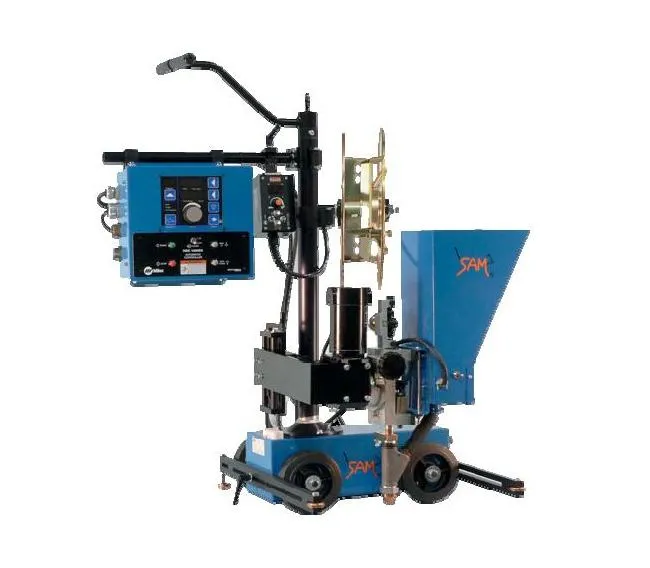

Submerged Arc Welding System SAM®

Friction drive heavy-duty travel Carriage, with positive chain drive on four (4) rubber tired wheels using a closed loop tack feedback for accurate speed control. Carriage controlled by the Gullco low voltage 24 volt GSP microprocessor pulse width modulation motor control, all mounted in a remote pendant control box attached to 8 ft. (243.84 cm) control cable housing the GSP control providing the forward/stop/reverse switch and infinitely variable 4-turn speed potentiometer. LED display in IPM or cm/min. An interface cable assembly allows the Miller HDC 1500 DX to control the run/stop function of the SAM®Carriage. A manual clutch enables free wheeling. Carriage complete with a main mounting mast and handle assembly, mounting arm for one wire reel, all mounting arms equipped with quick jaw mast clamp assembly; vertical and horizontal manual 4" x 4" slides (with hardened ground rods with sleeve bearings for ease of adjustment). Control support arm and one (1) set (two[2]) adjustable guide roll arms. For operation on either 42/115/230 volts, single phase, 50/60 Hz AC power supply.
