Gorbel, Inc.

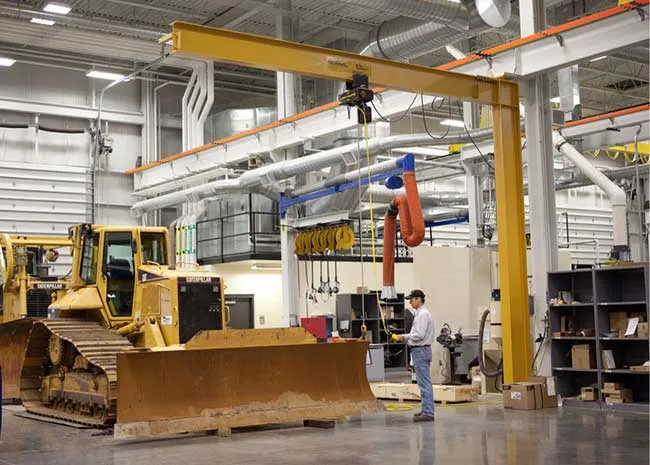

Mast Full Cantilever Type Jib Cranes

"Reduced thrust and pull forces, no foundation required.

The MT Series Crane is floor supported, top stabilized, and is capable of 360º rotation via a top and bottom bearing assembly.

Three key requirements must be met before deciding on a Mast Type Jib Crane:

An adequate structural support to stabilize the crane at the top of the mast must exist. If the jib is installed underneath an overhead crane runway or building truss, then the deflection of the supporting member may not exceed 1/2 inch
Clearance overhead for the pivot assembly must exist
Clearance overhead for the boom to rotate must exist"
