Driesen+Kern GmbH

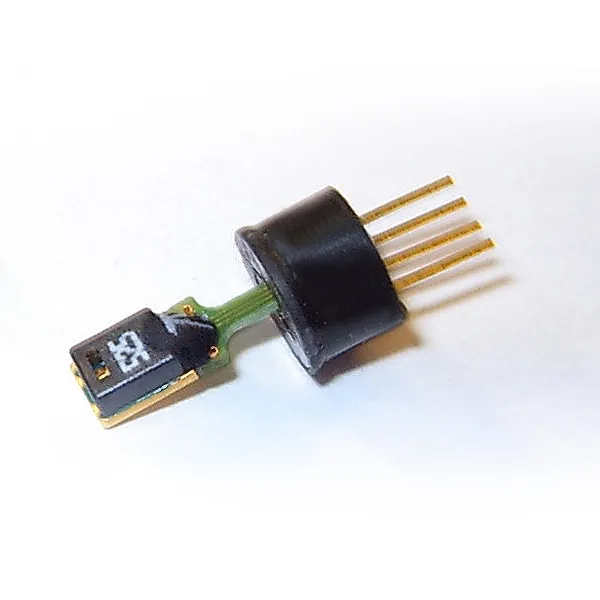

Humidity and Temperature Sensor SHT75DK

Humidity and Temperature Sensor SHT75DK is a digital, high-precision sensor for Humidity and Temperature. It comes fully calibrated and is easy to install due to its pin-type package (for 1.27mm sockets).

The digital humidity sensor includes a fully exchangeable option because of individual calibration and digital output. It also spares you the painful and intricate recalibration after changing it.

Its sensor head is connected to the pins only through a thin bridge isolating it thermally which further improves its response time. A sealing ring in front of the pins protects against humidity and corrosion. The sensor element can completely seal openings with a diameter of 7mm.

A small filter for protection against dust is also available. The model Filter400 can be pressed in cylindrical openings.

FEATURES:


• Humidity and temperature measurement combined in one sensor
• Precise dew-point measurement
• Fully calibrated, can be exchanged without recalibration
• Digital two-wire interface
• Fast response time
• Outstanding long-term stability (returns to given accuracy even after immersion and condensation)
• Serial number on the sensor (optional)
• Certificate of calibration (optional)
• High reliability (industrial CMOS technology)
• Low-power technology
• Sensor elements are self-testing
• Sensor heating for excellent precision and stability

FIELDS OF APPLICATION:


• Precise data logging
• Transmitter
• Automation and process control
• Building automation / HVAC
• High-grade consumer products
