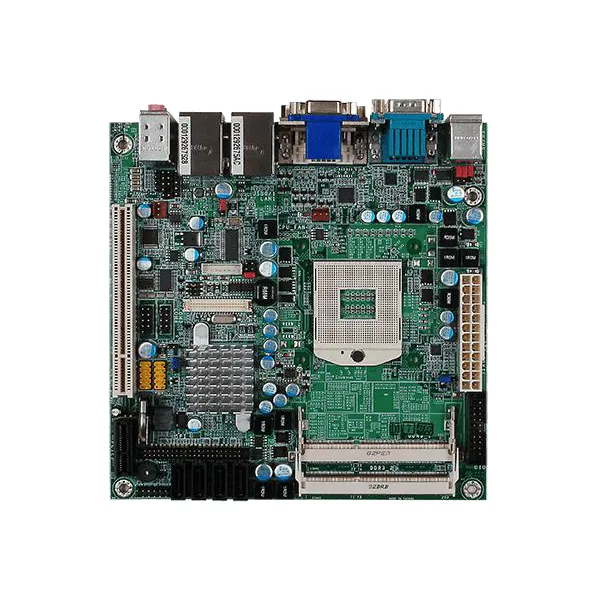

Mini-ITX motherboard CP100-NRM
Rich I/O: 2 Intel GbE, 4 COM, 8 USB 2.0, Expansion: 1 PCIe x1, 1 PCI , 1 DVI-I (DVI-D signal), 1 VGA, 1 LVDS, 2 DDR3 SODIMM up to 8GB, Intel® Core™/Intel® Celeron® with Intel® QM57, 7-Year CPU Life Cycle Support
Mini-ITX motherboard CP100-NRM Characteristics:
Processor
Intel® Core™ i7-620M (SV)
Intel® Core™ i5-520M (SV)
Intel® Celeron® P4500 (SV)
Supports IMVP6.5 up to 35W CPU
Chipset Intel® QM57
Memory Two 204-pin DDR3 SODIMM up to 8GB
Dual channel DDR3 800/1066MHz (PC3-6400/PC3-8500)
BIOS AMI SPI 64Mbit
Interface 1 x PCIe x1
1 x PCI
Audio Codec Realtek ALC262
Controller 1 x Realtek RTL8111C PCIe (10/100/1000Mbps)
1 x Intel 82577LM PCIe with iAMT6.0 (10/100/1000Mbps)
