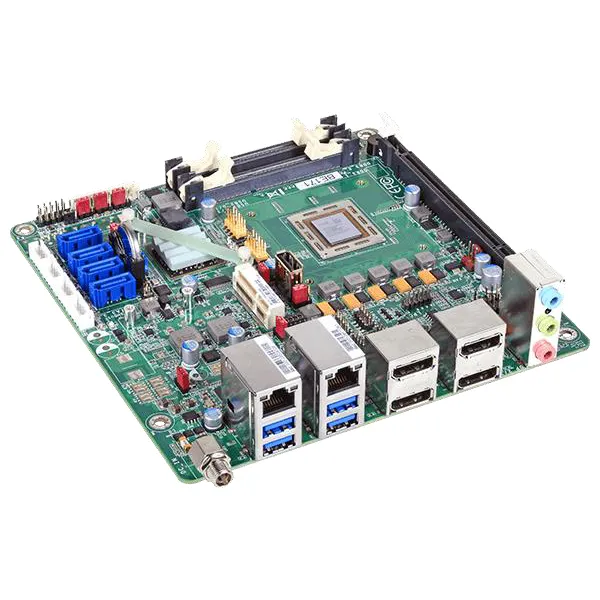

Mini-ITX motherboard BE171/BE173
AMD® Embedded R-Series Mini-ITX, Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.0, 5 USB 2.0, 2 DDR3/DDR3L SODIMM up to 16GB, 4 DP (supports DP++), Expansion: 1 PCIe x16, 1 Mini PCIe, 5-Year CPU Life Cycle Support
Mini-ITX motherboard BE171/BE173 Characteristics:
Processor AMD® RX-427BB, Quad Core, 4M Cache, 2.7GHz (3.6GHz), 35W
AMD® RX-225FB, Dual Core, 1M Cache, 2.2GHz (3.0GHz), 17W
Chipset AMD® A77E
Memory Two 204-pin SODIMM up to 16GB
Dual channel DDR3/DDR3L 1600/1866/2133MHz
BIOS AMI SPI 64Mbit
Audio Codec Realtek ALC888
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
