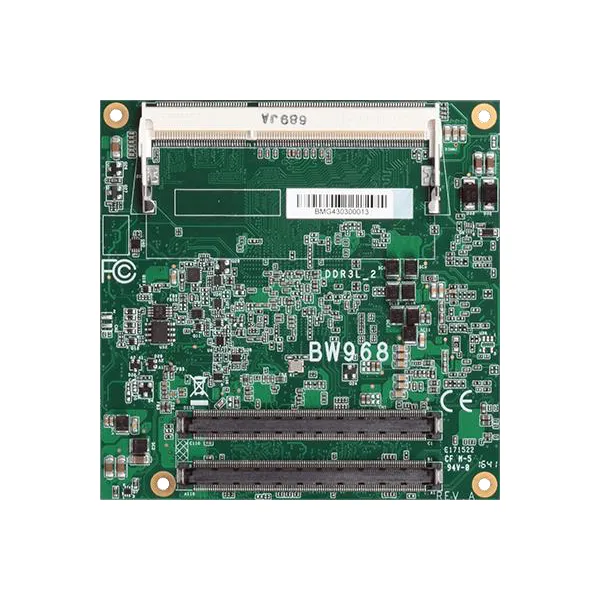

COM Express Type 6 BW968
Intel® Pentium®/Celeron® N3000, Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0, Multiple expansion: 3 PCIe x1, 1 LPC, 1 I2C, 1 SMBus, Three independent displays: VGA*/DDI + LVDS*/eDP + DDI, Dual channel DDR3L 1600MHz SODIMM up to 8GB, 15-Year CPU Life Cycle Support
COM Express Type 6 BW968 Characteristics:
Memory Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1600MHz
BIOS Insyde SPI 64Mbit
Controller Intel® HD Graphics
Feature OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Interface 3 x PCIe x1 (Gen 2)
1 x LPC
1 x I2C
1 x SMBus
2 x Serial (TX/RX)
Interface HD Audio
