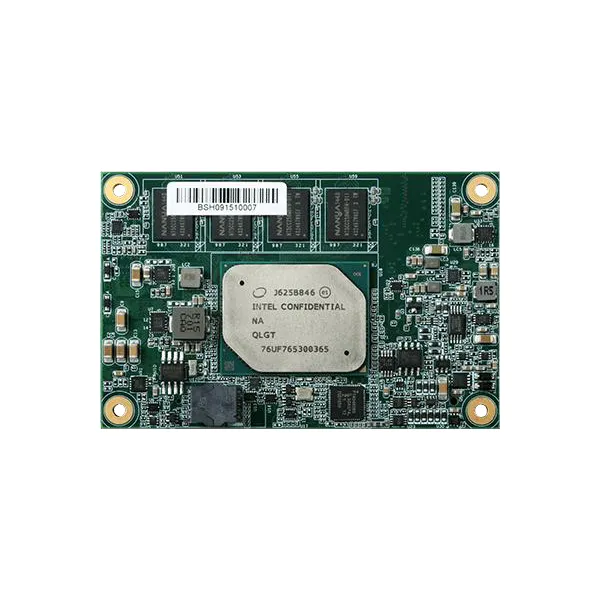

COM Express Type 10 AL9A2
Intel Atom® E3900 Processor Series, Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0, Multiple expansions: 4 PCIe x1, 1 LVDS/eDP, 1 DDI (HDMI/DVI/DP) Supports dual displays: DDI + LVDS/eDP, Dual Channel DDR3L 1600MHz Memory Down up to 8GB, 15-Year CPU Life Cycle Support
COM Express Type 10 AL9A2 Characteristics:
Memory 2GB/4GB/8GB DDR3L Memory Down (ECC support only for 8GB)
Single Channel DDR3L 1600MHz
BIOS AMI SPI 128Mbit
Controller Intel® HD Graphics
Feature OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
Display 1 x DDI (HDMI/DVI/DP)
1 x LVDS/eDP
LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz
HDMI: resolution up to 3840 x 2160 @ 30Hz
DP++: resolution up to 4096x2160 @ 60Hz
eDP: resolution up to 3840x2160 @ 60Hz
Dual Displays DDI + LVDS
DDI + eDP
