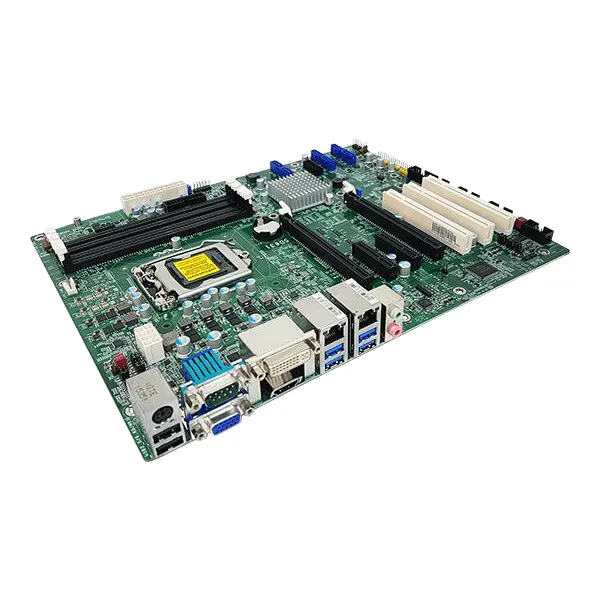

ATX Embedded Motherboard SD631-C236
7/6th Gen Intel® Core™ with Intel® C236, Rich I/O: 2 Intel GbE, 6 COM, 6 USB 3.0, 8 USB 2.0, Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 3 PCI, 1 LPC, 3 independent displays: VGA + DVI-I (DVI-D signal) + HDMI, 4 DDR4 ECC DIMM up to 64GB, 15-Year CPU Life Cycle Support
ATX Embedded Motherboard SD631-C236 Characteristics:
Chipset Intel® C236 Chipset
Memory Four 288-pin ECC DIMM up to 64GB
Dual Channel DDR4 1866/2133MHz
BIOS Insyde SPI 128Mbit
Controller Intel® HD Gen 9 Graphics
Feature OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Interface 2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3)
2 x PCIe x4 (Gen 3)
3 x PCI
Audio Codec Realtek ALC888S-VD2-GR
