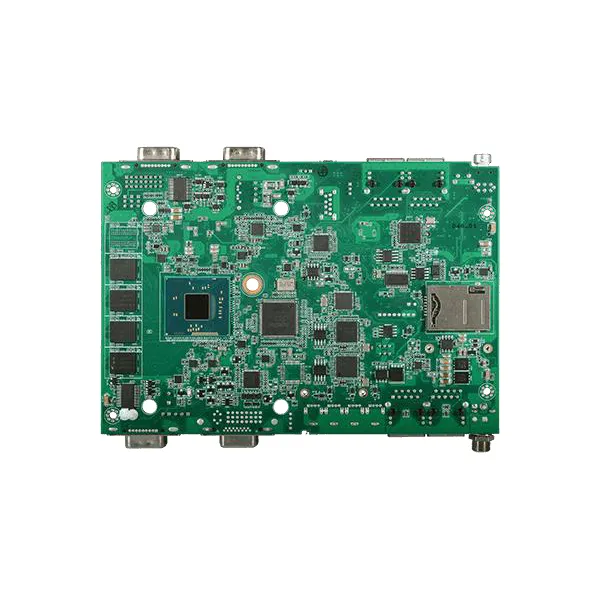

4 Inches SBC board BT259
Intel Atom® Processor E3800 4" SBC, 2GB/4GB DDR3L memory down, 1 VGA or 1 DVI-I (option), Expansion: 2 Mini PCIe, Rich I/O: 4 Intel GbE, 3 COM, 1 USB 3.0, 5 USB 2.0, 15-Year CPU Life Cycle Support
4 Inches SBC board BT259 Characteristics:
Processor
Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
BGA 1170 packaging technology
22nm process technology
Memory 4GB Memory onboard (E3845)
Single Channel DDR3L 1333MHz
2GB Memory onboard (J1900)
Single Channel DDR3L 1066MHz
BIOS AMI SPI 64Mbit
Controller 4 x Intel® I210 PCI Express (10/100/1000Mbps)
Output & Interval Watchdog timeout programmable via software from 1 to 255 seconds
Temperature Operating: 0°C~60°C
Storage: -20°C~85°C
